BWS disc

Features:

The 2020 new BWS is upgraded to a semi-circular arc on the sidewall compared to ordinary wheels, which makes the aerodynamics play better during riding. The air flows along the sidewalls, which also improves the lateral wind resistance.
At the same time, there are three types of clincher, tubeless and tubular. The inner width of 18.5mm can meet the needs of 700*25C-700*33C tires.
The rim brake version has 20 holes for the front wheel and 24 holes for the rear wheel.
The disc brake version has 20 holes or 24 holes on the front wheel and 24 holes on the rear wheel.

Size:

  • RD05
  • RD07
  • RD11
  • RD12
  • DT SWISS 350
  • DT SWISS 240
  • DT SWISS 180

Quick Details

  • Brand Name:

    Elitewheels
  • Series:

    BWS disc
  • Height:

    50mm
  • Size:

    700c
  • Spoke Hole:

    24-24H
  • Type:

    Tubular/Clincher /Tubeless
  • Hub:

    7 different hubs
  • Spoke:

    sapim/pillar
  • Warranty:

    1000 days

Feature

The 2020 New BWS Is Upgraded To A Semi-Circular Arc On The Sidewall Compared To Ordinary Wheels, Which Makes The Aerodynamics Play Better During Riding. The Air Flows Along The Sidewalls, Which Also Improves The Lateral Wind Resistance.

At The Same Time, There Are Three Types Of Clincher, Tubeless And Tubular. The Inner Width Of 18.5mm Can Meet The Needs Of 700*25C-700*33C Tires.

The Rim Brake Version Has 20 Holes For The Front Wheel And 24 Holes For The Rear Wheel.

The Disc Brake Version Has 20 Holes Or 24 Holes On The Front Wheel And 24 Holes On The Rear Wheel.

A:Rim

Type: BWS

Height:50mm

Internal Width:18.5mm

External Width:27mm

Tire Rang:700*25C~33C

Maximum Tire Pressure:8.9bar.130psi

B:Hub

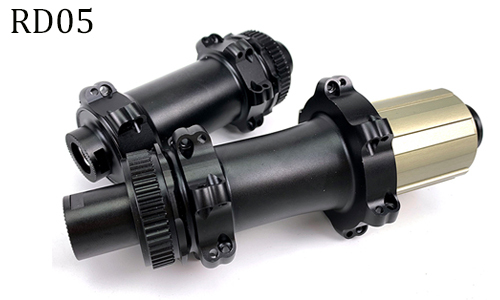

RD05

RD05>Free Hub System: 4 Pawls>Front 24 Holes .Rear 24 Holes>Axle-Front 12*100mm,Rear 12*142mm>.Brake Interface: Disc Center Lock

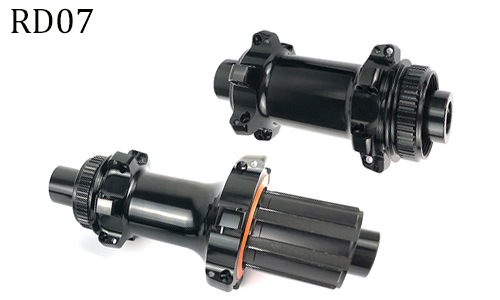

RD07

RD07>Free Hub System: 6 Pawls>Front 24 Holes .Rear 24 Holes>Axle-Front 12*100mm,Rear 12*142mm>.Brake Interface: Disc Center Lock&6 Bolt Lock

RD11

RD11>Free Hub System: 4 Pawls>Front 20 Holes .Rear 24 Holes>Axle-Front 12*100mm,Rear 12*142mm>.Brake Interface: Disc Center Lock



RD12

RD12>Ceramic Bearing>Free Hub System: 4 Pawls>Front 20 Holes .Rear 24 Holes>Axle-Front 12*100mm,Rear 12*142mm>.Brake Interface: Disc Center Lock

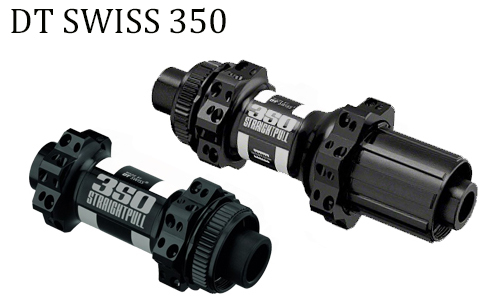

DT SWISS 350

DT SWISS 350>Free Hub System: Ratchet System 18T>Front 24 Holes .Rear 24 Holes>Axle-Front 12*100mm,Rear 12*142mm>.Brake Interface: Disc Center Lock

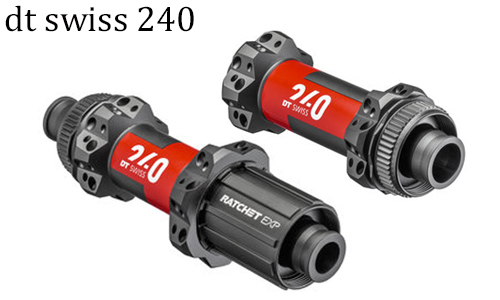

DT SWISS 240

DT SWISS 240 EXP>Free Hub System: Ratchet System 36T>Front 24 Holes .Rear 24 Holes>Axle-Front 12*100mm,Rear 12*142mm>.Brake Interface: Disc Center Lock

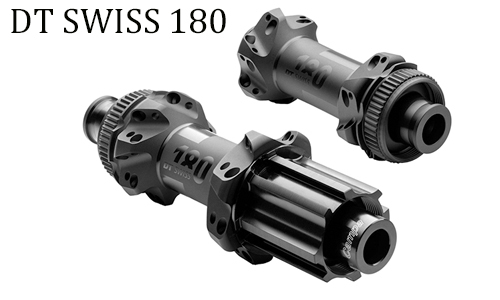

DT SWISS 180

DT SWISS 180>Ceramic Bearing>Free Hub System: Ratchet System 36T>Front 24 Holes .Rear 24 Holes>Axle-Front 12*100mm,Rear 12*142mm>.Brake Interface: Disc Center Lock



C:Spokes

Pillar Psr 1423

*Sapim Cx Ray Can Be Upgraded Additionally

D:Nipples

Sapim Secure Lock 14mm

Weight list

Hub Hole Axle system freebody hub weight pillar 1423 sapim cx ray&pillar 1420
total weight     total weight
Dt swiss 180 24/24 F-12*100mm    R-12*142mm shimano 276g 1562g±30g 1462g±30g
Dt swiss 240 305g 1591g±30g 1491g±30g
Dt swiss 350 403g 1689g±30g 1589g±30g
RD05 343g 1629±30g 1529±30g
RD07 370g 1656±30g 1556±30g
RD11 389g 1675±30g 1575±30g
RD12 350g 1636g±30g 1536g±30g
*XDR freebody will Lighter shimano 20-35g
