BWS

Features:

The 2020 new BWS is upgraded to a semi-circular arc on the sidewall compared to ordinary wheels, which makes the aerodynamics play better during riding. The air flows along the sidewalls, which also improves the lateral wind resistance.
At the same time, there are three types of clincher, tubeless and tubular. The inner width of 18.5mm can meet the needs of 700*25C-700*33C tires.
The rim brake version has 20 holes for the front wheel and 24 holes for the rear wheel.
The disc brake version has 20 holes or 24 holes on the front wheel and 24 holes on the rear wheel.
Standard with silver gradient logo, more fashionable.

Size:

  • RF08
  • RA18
  • R10
  • DT SWISS 350
  • DT SWISS 240
  • DT SWISS 180

Quick Details

  • Series:

    BWS
  • Height:

    50mm
  • Size:

    700c
  • Spoke Hole:

    20-24
  • Type:

    Tubular/Clincher /Tubeless
  • Warranty:

    1000 days




The 2020 new BWS is upgraded to a semi-circular arc on the sidewall compared to ordinary wheels, which makes the aerodynamics play better during riding. The air flows along the sidewalls, which also improves the lateral wind resistance.
At the same time, there are three types of clincher, tubeless and tubular. The inner width of 18.5mm can meet the needs of 700*25C-700*33C tires.
The rim brake version has 20 holes for the front wheel and 24 holes for the rear wheel.
The disc brake version has 20 holes or 24 holes on the front wheel and 24 holes on the rear wheel.

Standard with silver gradient logo, more fashionable.

Technology:

.Drainage grooves are added to the brake side, so that the brake is not easy to slip in wet road conditions, and the brake side can quickly return to dryness.

.New resin system and construction method, combined with the 3k rim track, withstands over 265℃C, dissipates heat, and lowers rim temperatures faster inbetween braking efforts.

.Use a high speed CNC machine to drill all the holes in our rims so they are uniform. The spoke and nipple access holes are drilled simultaneously so they match perfectly and have precise angles.

.One piece tech,stiffness has increased by 7%


A:Rim

Type: BWS

Height:50mm

Internal width:18.5mm

External width:27mm

Tire rang:700*25C~33C

Maximum tire pressure:8.9bar.130psi

B:Hub

RF08

Free hub system: 4 pawls>front 20 holes .rear 24 holes(2;1)>axle-front qr*100mm,rear qr*130mm


RA18(ceramic bearing)

Free hub system: 4 pawls>front 20 holes .rear 24 holes(2;1)>axle-front qr*100mm,rear qr*130mm

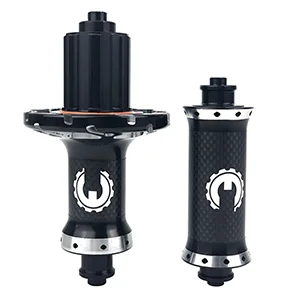

R10(Carbon tube&ceraing bearing)

Free hub system: 6 pawls>front 20 holes .rear 24 holes(2;1)>axle-front qr*100mm,rear qr*130mm


DT SWISS 350

Free hub system: Ratchet System 18T>front 20 holes .rear 24 holes>axle-front qr*100mm,rear qr*130mm


DT SWISS 240 EXP

Free hub system: Ratchet System 36T>front 20 holes .rear 24 holes>axle-front qr*100mm,rear qr*130mm


DT SWISS 180 EXP(ceramic bearing)
Free hub system: Ratchet System 36T>front 20 holes .rear 24 holes>axle-front qr*100mm,rear qr*130mm>.Brake interface: Disc center lock

C:Spokes

Pillar psr 1423

*Sapim cx ray can be upgraded additionally

D:Nipples

Sapim secure lock 14mm

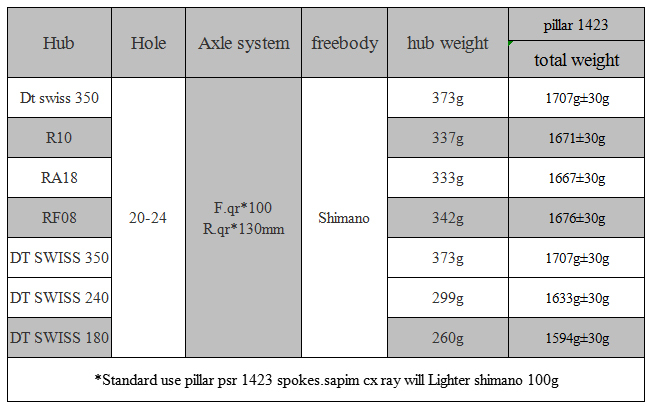

Weight list
