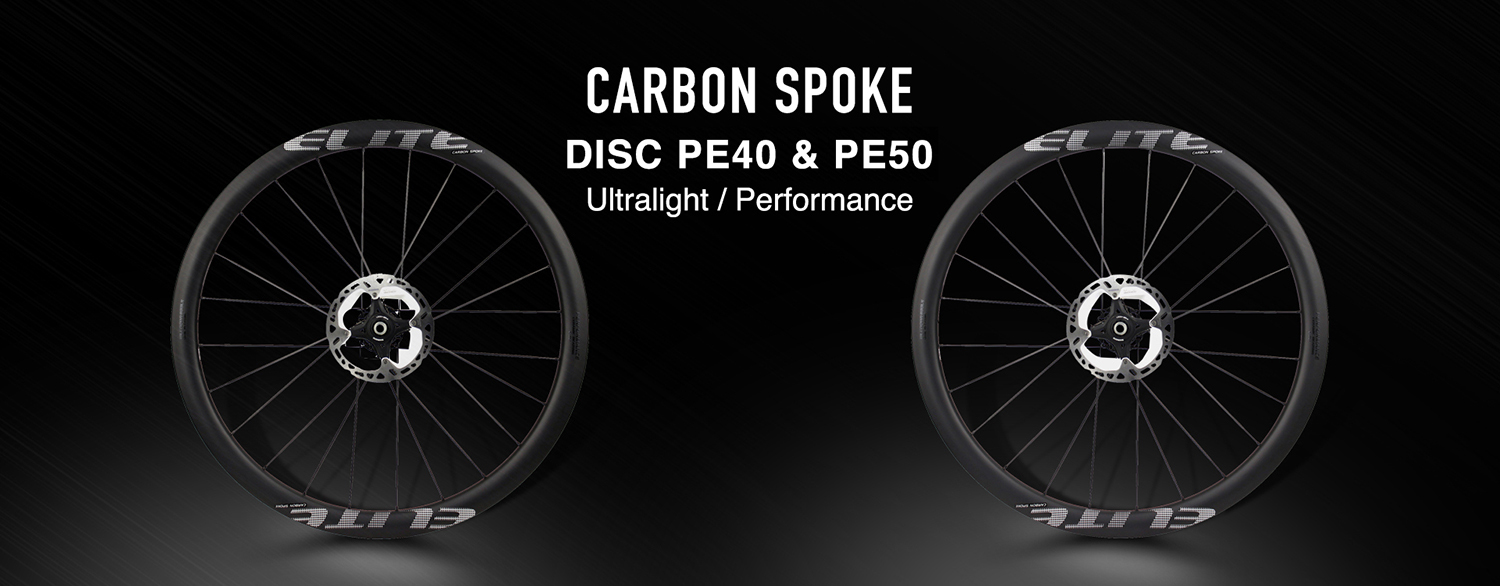

DISC PE

Features:

Carbon fiber spokes have higher stiffness and higher tensile strength, and the lateral response is 7% higher than that of the same steel spokes, and the high frequency vibration absorption capacity of carbon spokes is stronger than that of steel spokes. It can provide better aerodynamics and excellent stability, allowing you to have an advantage in full sprint and high-power climbing.

Size:

  • DISC PE40
  • DISC PE45
  • DISC PE50

Quick Details

  • Brand Name:

    Elitewheels
  • Series:

    DISC PE
  • Size:

    700c
  • Height:

    40,45,50mm
  • Inner width:

    21mm
  • Outer width:

    28mm
  • Spoke Hole:

    F21-R24
  • Finishing:

    UD fiber
  • Warranty:

    3 years

Product details

carbon wheel

Aero carbon spoke

Carbon fiber spokes have higher stiffness and higher tensile strength, and the lateral response is 7% higher than that of the same steel spokes, and the high frequency vibration absorption capacity of carbon spokes is stronger than that of steel spokes.It can provide better aerodynamics and excellent stability, allowing you to have an advantage in full sprint and high-power climbing.

BWT wheelset

Ceramic Bearings

Both front and rear hubs use S&S ceramic bearings,ceramic bearings further increase hub rolling efficiency with lower rolling resistance.At the same time, the non-driving side of the front and rear hubs have bearing pre-tightening side covers.

700c carbon wheelset

Performance hub

The front and rear hubs use 6902 bearings. The larger the bearing, the better the rigidity. On the premise of ensuring the performance output of the hub, we try to reduce the weight on the hub body and minimize the rolling resistance.

The disc brake hub uses 21 spokes on the front wheel, 14 spokes on the drive side, and 7 spokes on the non-drive side. The rear hub has 24 spokes, 16 on the drive side and 8 on the non-drive side.

After 6 months of continuous design and continuous improvement, we have found the best geometric angle of the hub so that the spoke tension on the driving side is the same as the tension on the non-driving spoke side, which is very important. In this way, the stability of the wheels can be improved to a greater extent when entering a curve quickly.

carbon wheel

Tubeless compatible

All PE wheel series are tubeless compatible, if you want to use tubeless tire, we will be equipped with tubeless rim tape and tubeless valve.

BWT wheelset

Unique logo

The silver logo is representative of the ELITEWHEELS performance wheel set, more eye-catching.

SPECIFICATIONS

​DISC PE40
RIM SPOKE
SERIES DISC PE40 FRONT SPOKE PATTERN Radial
RIM TYPE Tubeless compatible REAR SPOKE PATTERN Radial
RIM WIDTH 40mm SPOKE COUNT 21F/24R
INNER WIDTH 21mm SPOKE TYPE CS-01
OUTERWIDTH 28mm NIPPLE TYPE Alloy secure lock
HUB OTHER
FRONT HUB 12*100 ceramic bearing ASSEMBLY METHOD Handbuilt
REAR HUB 12*142 ceramic bearing EXTRAS Spokes,nipples
BRAKE INTERFACE Center lock WEIGHT F.560g  R.700g
HUB TYPE YAn RD28 center lock SYSTEM WEIGHT LIMIT 275lbs / 125kg
CASSETTE BODY SHIMANO&XDR RECOMMENDED TYRE SIZES 25 to 43mm
DISC PE45
RIM SPOKE
SERIES DISC PE45 FRONT SPOKE PATTERN Radial
RIM TYPE Tubeless compatible REAR SPOKE PATTERN Radial
RIM WIDTH 45mm SPOKE COUNT 21F/24R
INNER WIDTH 21mm SPOKE TYPE CS-01
OUTERWIDTH 28mm NIPPLE TYPE Alloy secure lock
HUB OTHER
FRONT HUB 12*100 ceramic bearing ASSEMBLY METHOD Handbuilt
REAR HUB 12*142 ceramic bearing EXTRAS Spokes,nipples
BRAKE INTERFACE Center lock WEIGHT F.570g  R.710g
HUB TYPE YAn RD28 center lock SYSTEM WEIGHT LIMIT 275lbs / 125kg
CASSETTE BODY SHIMANO&XDR RECOMMENDED TYRE SIZES 25 to 32mm
DISC PE50
RIM SPOKE
SERIES DISC PE50 FRONT SPOKE PATTERN Radial
RIM TYPE Tubeless compatible REAR SPOKE PATTERN Radial
RIM WIDTH 50mm SPOKE COUNT 21F/24R
INNER WIDTH 21mm SPOKE TYPE CS-01
OUTERWIDTH 28mm NIPPLE TYPE Alloy secure lock
HUB OTHER
FRONT HUB 12*100 ceramic bearing ASSEMBLY METHOD Handbuilt
REAR HUB 12*142 ceramic bearing EXTRAS Spokes,nipples
BRAKE INTERFACE Center lock WEIGHT F.580g  R.720g
HUB TYPE YAn RD28 center lock SYSTEM WEIGHT LIMIT 275lbs / 125kg
CASSETTE BODY SHIMANO&XDR RECOMMENDED TYRE SIZES 25 to 43mm

carbon spoke

TECHNOLOGY

carbon wheel

BWT wheelset

CHA/Customized spoke hole angle

All spoke hole angles must be customized according to the geometric angle of the hub.all drilled holes are inspected to ensure they are free of burrs.You can request a customized drilling pattern if you have a unique wheel build.

TRD/Tubeless R angle design

All yuan an bike are tubeless compatible.We design a R angle,The rounded edge makes tire installation easier and offers increased support during hard cornering with a softer edge and larger surface area.

LMS/lighter materials improve the strength

We use lighter materials and make full use of the combination of T700 and T800 to improve the strength.

SIW/smooth Inside Wall

We use a specific, thinner, high-pressure air bladders to control the inner wall smoothness, and the inner wall air bladders can be extracted clean at one time, without residue, not only effectively improve the tightness of the carbon fiber yarn, but also allow the spoke cap to be more tightly integrated with the spoke hole

OPT/one piece technology

Compared to the technology of 3 piece, our one piece tech is more technically difficult and takes longer to produce, but the rigidity of the rim is at least 7% higher

BLT/Bead Lock technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. When the tire is mounted, the raised portion reinforces the tire bead, making it harder to “burp” or fall back into the drop channel.
