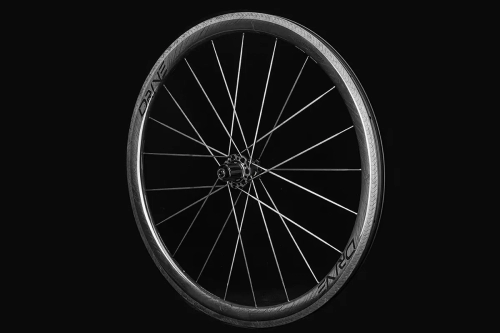

Drive 40V Rim Brake

(4 customer reviews)

The Drive 40V is dedicated to those who want an all-rounder that is more geared towards riding in the hills and mountains. The wheelset features carbon spokes, light and stiff UNI carbon fiber as well as high precision, ceramic bearing hubs. It is also tubeless ready. The Drive 40V is for those who want a pro-level wheelset. The ultralight version comes in at only 1255g for the pair.

– Carbon Spoke Wheelset
– Rim Brake Wheelset
– Ultralight Version by default

*It is recommended that you check with your frame and brake caliper brands for maximum tire clearance.

– Custom option for different rim depths

$1,169.00

Recommended accessories
Drive 40V Black Hub-1
This item: Drive 40V Rim Brake
$1,169.00
$1,169.00
Black Prince Bake Pads
-
+
$32.00
These optional brake pads offer improved wet weather braking performance, cooler braking temperatures, and better modulation. Save more if you order them alongside this wheelset.
* After placing the order, an email will be sent to you, please confirm the order details carefully. If you have any questions, you can directly reply to the email.

Warranty

Crash Replacement

Free shipping

Global service

Description

Specifications

Rim
Series Drive
Wheel Size 700c
Tire Compatibility Clincher/ Tubeless
Rim Depth 40mm
Inner Width 19.5mm
Outer Width 28mm
Hub
Front Hub Spacing QR x 100mm
Rear Hub Spacing QR x 130mm
Bearing S&S Ceramic
Brake Compatibility Rim Brake
Freehub Type 4 Pawls
Freehub Compatibility Shimano / SRAM XDR / Campagnolo
Spoke
Front Spoke Pattern Radial
Rear Spoke Pattern 2X/Radial (2:1)
Spoke Count 18F/21R
Spoke Type Carbon
Nipple Type Alloy Secure Lock
Other
Weight(pair) 1255g±30g(Ultralight)
Rim finish Glossy Marbling Black
Extras Rim Tape(Installed), Tubeless Valves, Spokes(3), Quick Releases, Brake Pads(2 Sets)
Rider Weight Limit 275lbs/125kg
Recommended Tyre Sizes 700 x 25-33C
Certification UCI Approved
Drive V Banner

DRIVE 40V Rims

Drive 40mm rim brake carbon spoke wheelset Drive rims

DRIVE RIMS

At Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best performance, we incorporate our own UNI carbon fiber, a specific ratio of T800 and T1000 carbon fiber (*Read more about UNI technology), making rims not only strong, but also exceptionally light and stiff. The U/V-shaped rim profile of the Drive 40V was chosen to make the rim both aero as well as stable in windy conditions.

DRIVE 40V wheelset Carbon Spokes

DRIVE 40V wheelset Carbon Spokes

CARBON SPOKES

What separates the Drive 40V from most other wheels is its use of high-modulus carbon spokes. They are 3.2mm wide aero bladed spokes, offering 7% more lateral stiffness as compared to equivalent steel spokes. The carbon spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular steel spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give them a double-locking effect.

Read more about CARBON SPOKES.

DRIVE 40V wheelset Performance hub

elitewheels Carbon Spoke Wheelset

PERFORMANCE HUB

To get the most out of carbon fiber spokes, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

DRIVE 40V wheelset Ceramic Bearings

elitewheels Carbon Spoke Wheelset

CERAMIC BEARINGS

The 40V’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

Read more about ceramic bearings.

DRIVE 40V wheelset Brake surface

DRIVE 40V wheelset Brake surface

BRAKE SURFACE

The Drive 40V uses a blend of 270 ℃, high-temperature resin, developed by Elitewheels, and Japanese Toray T800 carbon fiber for the brake surface. This heat resistance ensures excellent braking performance even on long, steep descents. The brake track also features laser-etched grooves to clear water away, giving safe, consistent braking in wet conditions.

In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.

DRIVE 40V

Is this wheelset UCI approved?

Which brands’ freehubs are compatible with Drive wheelsets?

Is there an internal nipple option?

Are brake pads included? Can I use break pads from other brands?

Are ceramic bearings easily broken?

What does the rider weight limit include?

What tire pressures should I run?

How strong are your carbon rims? What happens if I break one?

Where can I find information on ordering and shipping?

Essential Safety Information

What happens if a carbon spoke breaks?

Are carbon spokes covered under warranty?

Additional information

Weight 1 kg

4 reviews for Drive 40V Rim Brake

  1. Danny

    1. The wheels sealed on tubeless Schwalbe Pro One very easily.
    2. They are very light and you feel it even on small incline uphills.
    3. My Cannondale CAAD10 looks amazing on them.
    4. The rim is directional and the braking surface is superb to the competitors (rim brake).
    5. Spokes tension is high – the wheels don’t rub the rims even during sprints, but those who ride very harsh roads perhaps would feel it though my tubeless setup with 26mm tires improve ride quality in those situations.

    (1) (0)
    • Patrick (store manager)

      Hi Danny. Thank you for sharing your experience. It is nice that they were able to seal easily and that they have proven to be a good climbing wheelset. In addition to 26mm tubeless tires being more compliant, the wheels are also aerodynamically optimized for that tire width.

  2. Jorge Banks (verified owner)

    Love the wheels, impressive set & very nicely crafted.

    (0) (0)
  3. Jorge (verified owner)

    An impressive wheelset. Very well crafted, durable, strong & super responsive, I love them, they also make any bike look superb. Well done Team Elite, keep up the great workmanship! ??????
