Description
Specification
| Rim | |
| Series | Drive |
| Wheel Size | 700c |
| Tire Compatibility | Clincher/ Tubeless |
| Rim Depth | 65mm |
| Inner Width | 21mm |
| Outer Width | 28mm |
| Rim Finish | Glossy Marbling Black |
| Hub | |
| Front Hub Spacing | QR x 100mm |
| Rear Hub Spacing | QR x 130mm |
| Bearing | S&S Ceramic |
| Brake Compatibility | Rim Brake |
| Freehub Type | 4 Pawls |
| Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
| Spoke | |
| Front Spoke Pattern | Radial |
| Rear Spoke Pattern | 2X/Radial (2:1) |
| Spoke Count | 18F/21R |
| Spoke Type | Carbon Spoke (3.2mm) |
| Nipple Type | Alloy Secure Lock |
| Other | |
| Extras | Rim Tape(Installed), Tubeless Valves, Spokes(3), Quick Releases, Brake Pads(2 Sets) |
| Weight (Pair) | 1500g±30g |
| Rider Weight Limit | 285lbs/130kg |
| Recommended Tire Sizes | 700 x 25-33C |
| Certification | UCI Approved, CE Certified |

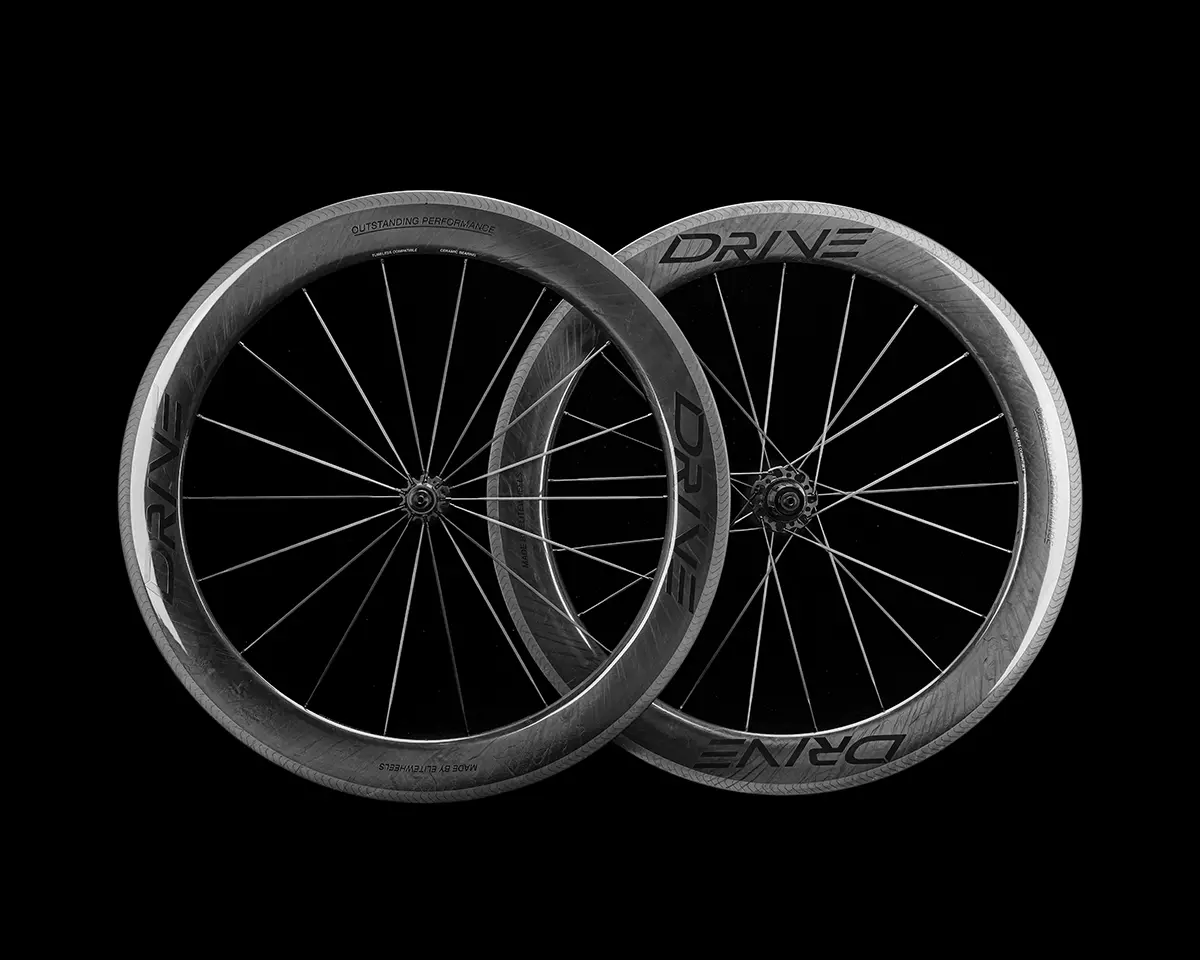

DRIVE 65V Elitewheels Carbon Spoke Rim Brake Wheelset

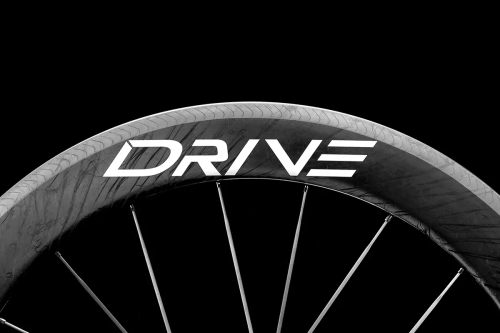

DRIVE RIMS
At Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best performance, we incorporate our own UNI carbon fiber, a specific ratio of T800 and T1000 carbon fiber (*Read more about UNI technology), making rims not only strong, but also exceptionally light and stiff. The U/V-shaped rim profile of the Drive 65V was chosen to make the rim both aero as well as stable in windy conditions. The Drive 65V’s 21mm inner rim allows for wider tires to be run, allowing for more comfort and grip.
DRIVE 65V Elitewheels Carbon Spoke Rim Brake Wheelset

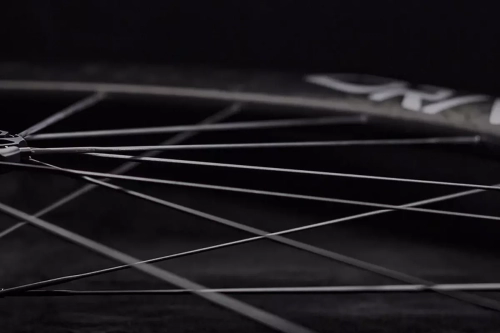

CARBON SPOKES
What separates the Drive 65V from most other wheels is its use of high-modulus carbon spokes. They are 3.2mm wide aero bladed spokes, offering 7% more lateral stiffness as compared to equivalent steel spokes. The carbon spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular steel spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give them a double-locking effect.
DRIVE 65V Elitewheels Carbon Spoke Rim Brake Wheelset

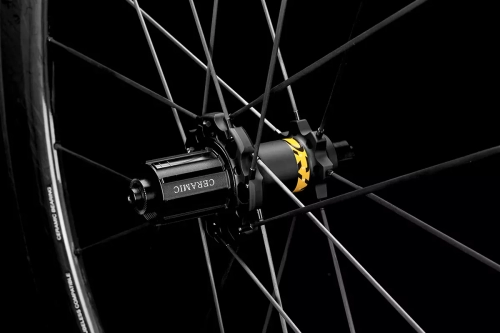

PERFORMANCE HUBS
To get the most out of carbon fiber spokes, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.
DRIVE 65V Elitewheels Carbon Spoke Rim Brake Wheelset

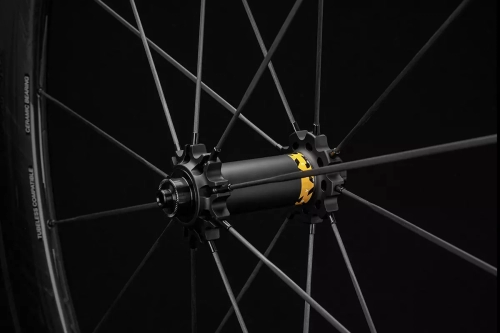

CERAMIC BEARINGS
The 65V’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
DRIVE 65V Elitewheels Carbon Spoke Rim Brake Wheelset

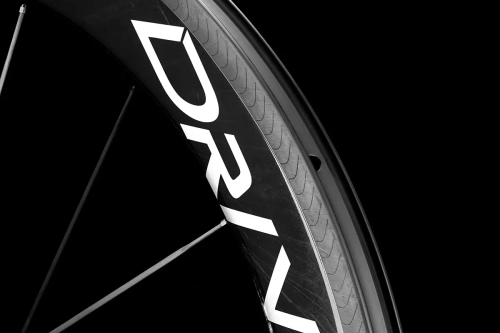

BRAKE SURFACE
The Drive 65V uses a blend of 270 ℃, high-temperature resin, developed by Elitewheels, and Japanese Toray T800 carbon fiber for the brake surface. This heat resistance ensures excellent braking performance even on long, steep descents. The brake track also features laser-etched grooves to clear water away, giving safe, consistent braking in wet conditions.
In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
