Description
Specifications
| Rim | |
| Series | Drive |
| Wheel Size | 700c |
| Tire Compatibility | Clincher/ Tubeless |
| Rim Depth | 45mm |
| Inner Width | 24mm |
| Outer Width | 31mm |
| Hub | |
| Front Hub Spacing | 12x100mm |
| Rear Hub Spacing | 12x142mm |
| Bearing | Ceramic |
| Brake Compatibility | Disc (Center Lock) |
| Freehub Type | 4 Pawls |
| Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
| Spoke | |
| Front Spoke Pattern | 2X/Radial |
| Rear Spoke Pattern | 2X/2X |
| Spoke Count | 20F/20R |
| Spoke Type | Carbon Spoke (3.2mm) |
| Nipple Type | Alloy Secure Lock |
| Other | |
| Rim Finish | Glossy Marbling Black |
| Extras | Rim Tape(Installed), Tubeless Valves(Installed), Spokes(4) |
| Weight (Pair) | 1300±30g (without tubeless valves and rim tape) |
| Rider Weight Limit | 285lbs/130kg |
| Recommended Tire Sizes | 700 x 30-50c |
| Certification | UCI Approved,CE Certified |

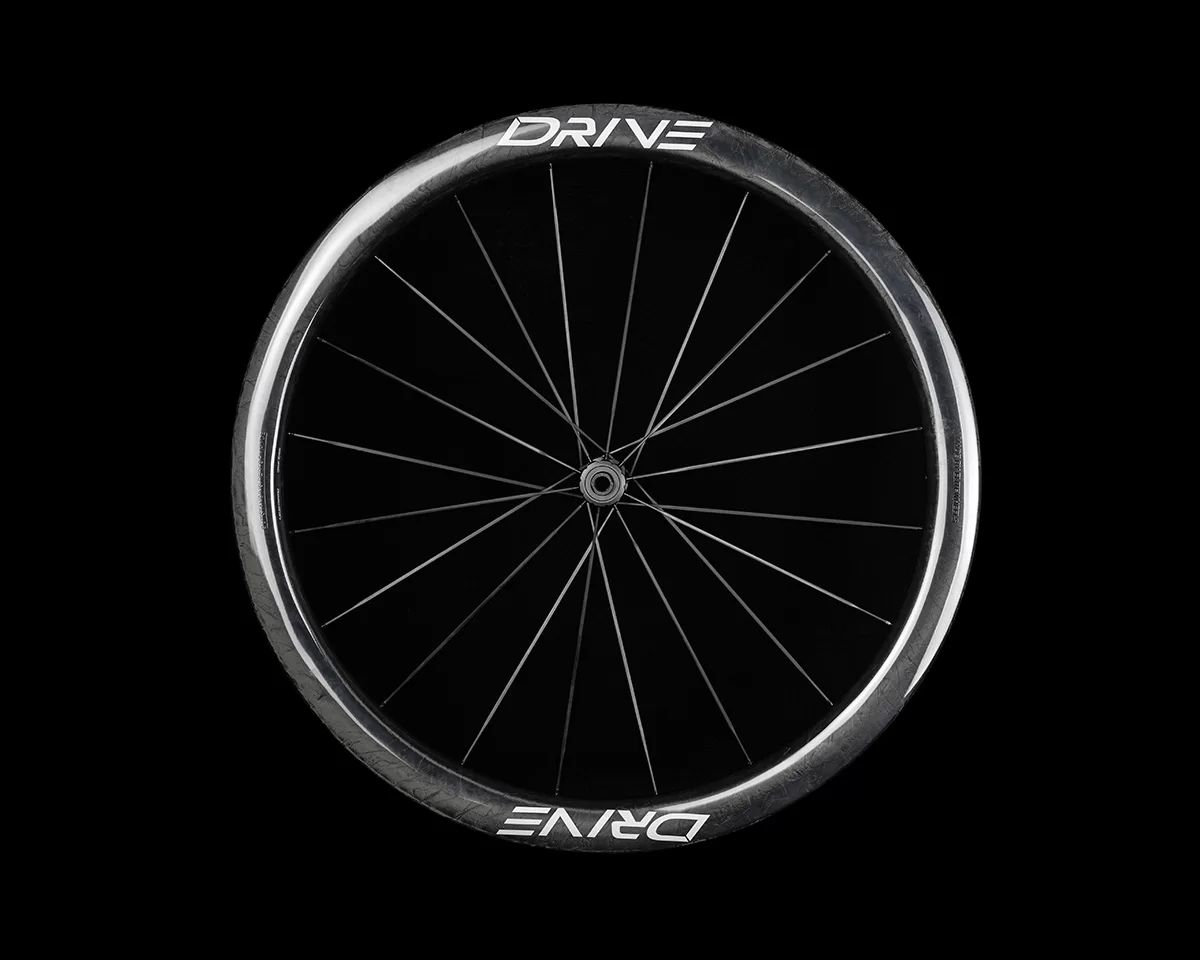

Drive G45 Carbon Spoke Gravel Wheelset Disc brake Rims

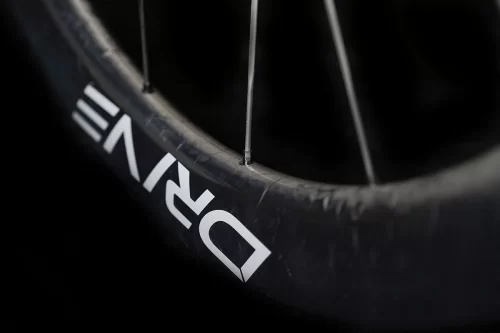

RIMS
Our innovative rim makes use of our unique UNI technology (Learn more about our UNI technology here).
The Drive G45 CS wheelset uses a U-shaped rim which has the aerodynamic advantages of a road wheel. It’s 24mm inner rim width supports 700*30c-50c tires. This flexibility allows for road riding or trail riding. The G45 CS is truly a force to be reckoned with regardless of the riding you do. The glossy marble carbon fiber design gives the wheelset a unique and striking appearance.

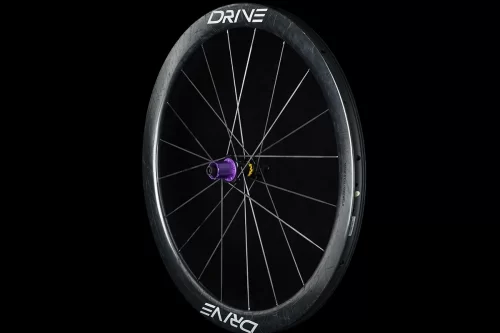

Drive G45 Carbon Spoke Gravel Wheelset Disc brake Hubs
HUB
The Drive G45 CS wheelset includes a custom, high-end hub that uses a double-walled waterproof design. The hub flanges have been specifically designed to be simple and practical in form. This makes for easy cleaning of the hub after riding in muddy conditions.
As the hub uses premium ceramic bearings for less rolling resistance. Using these allows for a much longer service life as compared to steel bearings.
Drive G45 Carbon Spoke Gravel Wheelset Disc brake Spokes
SPOKES
Drive G45 CS uses high modulus carbon fiber spokes. The wheels are 7% stiffer than a comparable wheelset using steel spokes. This difference in stiffness is immediately apparent when out for a ride. Carbon spokes are also three times more fatigue resistant than their steel counterparts. The loss of tension experienced riding steel spokes with long-term use can essentially be avoided.
Drive G45 Carbon Spoke Gravel Wheelset Disc brake Durability
DURABILITY
The wheelset has flawlessly passed our 20,000km rough surface factory/laboratory tests which simulate gravel riding conditions. This far exceeds the en17406 test standard.
in the box disc brake drive
In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
Petr Hannsmann –

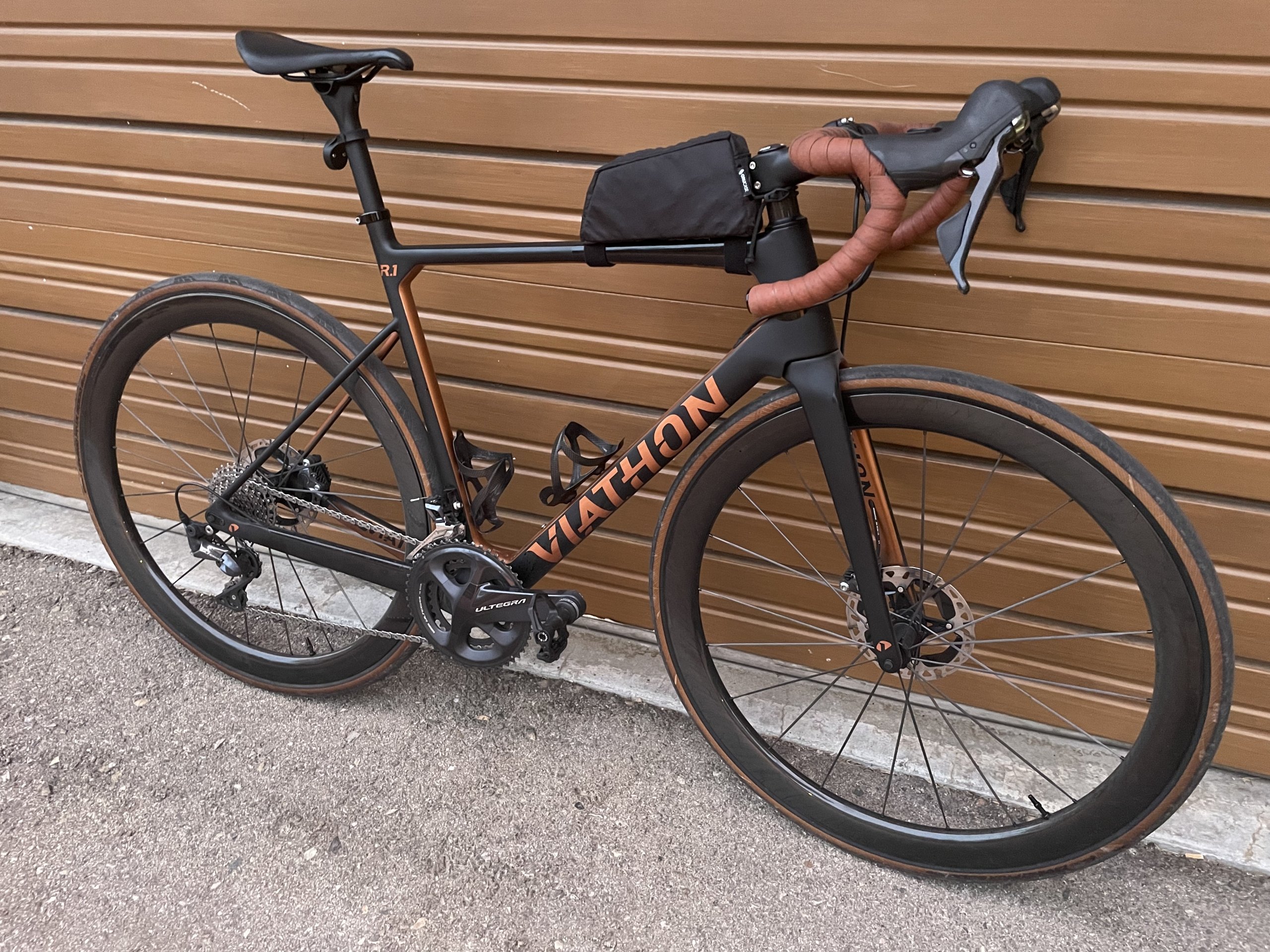

Chose the wheelset for my local “garage” Titanium gravelbike, built more towards road and speed. Absolutely loving the whees, they feel amazing and are insanely light (paired with TPUs it’s really a stepup from base alu wheels my previous bikes had).
Used Panaracer Gravelking Slicks (700×38) and it is an amazing combo.
Elitewheels (store manager) –
Hi Petr,
Thank you for sharing those great photos with us! The G45 CS paired with your titanium gravel frame looks awesome. We’re excited to hear about your real-world testing experience. Happy riding!
Franck wambo (verified owner) –
C’est la deuxième paire de roue que j’achète. J’ai l’impression d’avoir un nouveau vélo. Elles sont super légères et assez rapides. Le bruit de la roue libre est magique. Commande reçue en 3 semaine à bruxelles.
Elitewheels (store manager) –
Hi Franck,
Thank you for sharing your experience with us! We’re thrilled to hear you’re happy with our wheelsets and enjoying the sound of the hub. Your support is our greatest motivation. We’ll continue delivering great products. Happy riding!
Cesar Abel –
Perfect wheels for Road use, so stiff on gravel use. I paired it with Panaracer Gravel King TLC and it works like gem.
Elitewheels (store manager) –
Hello Cesar. Thank you for sharing your experience. We are glad to know you are satisfied with them on the road and on gravel. Happy riding!
Vick Patrick (verified owner) –
Photos attached
Vick Patrick (verified owner) –
Very please with the fast delivery and the overall quality.
Front wheel 630g and rear 730g with Tim tape present, thus total 1360g for the set excluding valves+ rim tape.
Coupled with 32c GP5000 + 35g Pirelli TPUs , totalling 2015g @ 6.5bars.
With this set up my 3T exploro race max not just lighter, but feels as fast as my 2017 Trek madone 9.5 with.
Fingers crossed they would last 20k km and beyond, highly recommended
elitekang –
Hello Vick. The pictures look great. Thank you for taking the time to review the G45 wheelset.It is nice that you are pleased with the delivery time, the lightness, and speed advantage the wheels can offer. Happy riding!
Marius (verified owner) –
I bought a Topstone 4 Gravel Bike and upgraded the frame with GRX 600. The original WTB wheelsets where just heavy and noch very stiff. The new g45 CS make the bike look quite cool and the difference in weight is just astonishing. Riding with the new wheels feels so much more reasshuring and I hope the german winter will end soon. My bike now weights less than 9kg. Shipping took from 04.01. to the 22.01. and the box came in really good shape. So I am quite happy with the purchase.
Patrick –
Hello Marius. Thank you for taking the time to share your experience. It is nice to hear that the G45 has been a nice upgrade and got your bike under 9kg. Happy riding!
Stan (verified owner) –

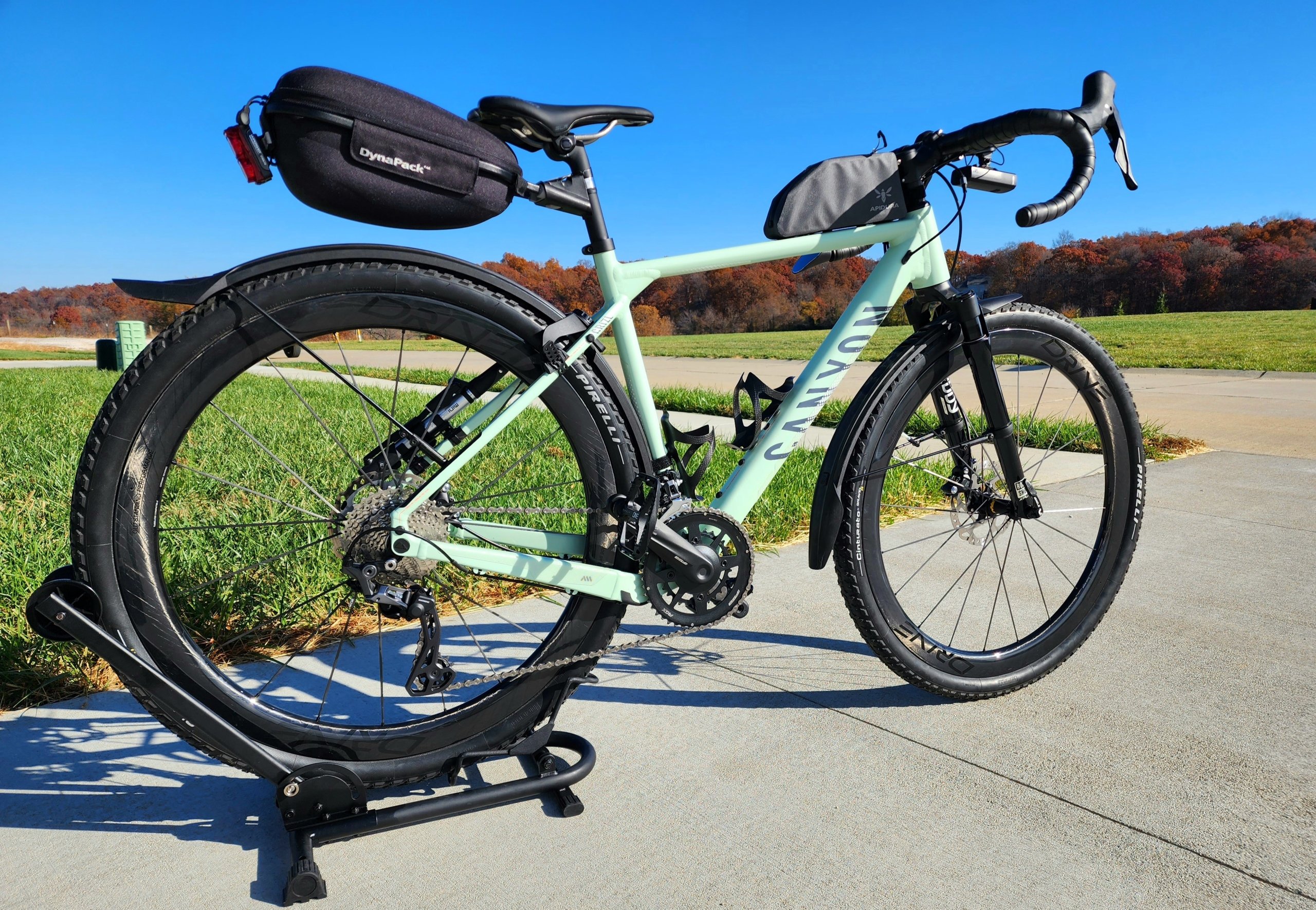

Great set of wheels. Super light at 1340 grams for the pair, compared to the original DT Swiss p1800 which were 2026 grams. Installation was super simple, just a direct swap from old to new. Pairing G45s with ridenow tpu inner tubes, shaved 980 grams off the bike. Ride is a bit stiffer but still very smooth. Rolling resistance definitely decreased as the bike rolls much further on its own. Furthermore, the 45 mm depth and carbon layout makes the bike look bonkers. A definitely a head turner.
Hub sound check:
https://youtu.be/F7cecpeDMJU?si=fMzgHL1UOAp1fdPE
Patrick –
Hello Stan. Thank you for the awesome pictures. Your two Canyons look great! It is nice to hear that you were able to shave so much weight off the bike while also reducing rolling resistance. Also, thank you for sharing the video. I see that your YouTube channel has the freehub sound of the 40D as well. We appreciate your feedback.
Maury (verified owner) –
I didn’t think the wheels could change the bike so much.It feels like riding a new bike.Faster, more responsive, smoother and lighter. Fit perfectly, perfect tubeless seal.The weight corresponds to what is indicated. I gained 600g less. I would buy them again without a doubt. Best upgrade for my bike
Patrick –
Hello Maury. It is great to see that the wheels have been a big upgrade for your bike. We are glad they are stiffer, lighter, and run more smoothly than what you had before.
leerags (verified owner) –
I purchased this wheelset for my wife a few months back for her ROAD bike. I know, I know. This is a “gravel” wheelset but look at Enve and other high end wheel manufacturers. They all have wheelsets that have an outer diameter of around 30mm. The 45mm rim depth and the light weight (1350gm) make this a great all-around wheelset. I paired the wheels with with Conti GP5000 30mm tubeless tires and they mounted easily without any tire levers and didn’t need any sealant to seal up when I initially inflated them. SUPER EASY! I did dump a bunch I of that Silca tire sealant into them and pumped them up to about 60psi! What a difference the bigger tires make. The width of the tire and rim are almost identical at just over 31mm. The bike now feels so much better over chip seal and rough roads. She is noticeable faster when coasting with her girls and is way more comfortable. Did I mention they look sweet?! It checks off all the boxes. I may get a pair for myself. The wheels are still true and no issues with the hubs. This purchase is a no-brainer for someone wanting to upgrade.
Patrick –
Thank you for sharing your experience with the wheels. It is nice to see that the tubeless install was simple and easy. We are happy that she is more comfortable and can ride faster with the new wheelset. The G45 wheels are certainly suitable for road cyclists who want wider tires.
William Snyder (verified owner) –
I am a larger rider, 280 pounds (127 kg). I bought the G45 with the intention of just using them on the pavement (a little scared I might destroy them). After buying them in August of 2022 I babied them for the first six months then took a chance on gravel path one day and I was totally amazed. I have taken these wheels on paths that have taco’s alloy rims and the did not even flinch. I will be buying some road wheels and a set for my mountain bike. These wheels are everything they say they are and more. Thank you elite for bringing back some fun in my riding.
Patrick –
Hi William.
Thank you for sharing your experience. We appreciate your feedback. It is great to see that you are really enjoying them.
If you do decide to order road and MTB wheels, please note the system weight limit as it does vary depending on the wheelset.
