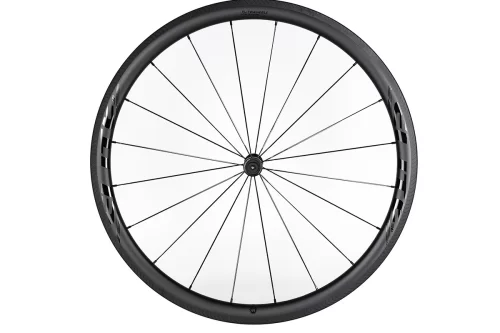

Elitewheels KING

KING is the high-end series of Elitewheels, and every parameter of the KING series is customized for the competition.
Special high temperature resin, combined with aero brake surface, has good braking performance.
Customized Japanese Toray carbon fiber material. The rims of the KING series are all stiffer than the other series.
.

This product is currently out of stock and unavailable.

* After the order is placed, we will have customer service contact you to confirm the order details.
*Due to the effects of Covid-19, EMS or DPD (Free Shipping) is experiencing some delays(30days+)

Warranty

Free trial within

Free shipping

Global service

SKU: N/A Categories: , Tag: Product ID: 3766

Description

Specification

Series KING
Size 700C
Rim Type Clincher (Tubeless Compatible)
Inter Width 17-18.5mm
Outer Width 28mm
Rim Depth 38/50/60/82mm
Weight Limit 130-135kg
Recommended Tire Size: 700*25C-700*33C
Tyre Pressure 130psi Recommended Max
Front Hub DT Swiss 240
Rear Hub DT Swiss 240
Freebody System Ratchet Exp
Freehub Compatibility Shimano/Sram 10-11Speed
Spokes Sapim CX Ray
Front Spoke Pattern Radial
Rear Spoke Pattern Radial/Two-cross
Spoke Count 20F/24R
Nipple Type Sapim Secure Lock
Assembly Method Handbuilt
Extras QR/ Brake Pads/ Rim Tape

Weight(pair)

38mm 1425g±30g
50mm 1515g±30g
60mm 1605g±30g
82mm 1795g±30g
Elitewheels DRIVE

FEATURE:

KING is the high-end series of Elitewheels, and every parameter of the KING series is customized for the competition.
Special high temperature resin, combined with aero brake surface, has good braking performance.
Customized Japanese Toray carbon fiber material. The rims of the KING series are all stiffer than the other series.
Standard with DT SWISS 240 hub and Sapim cx ray spokes. Similarly, the most important spoke tension value is more than 130kgf.

Elitewheels KING Wheelset Competition Level Rim

Elitewheels KING Wheelset Competition Level Rim

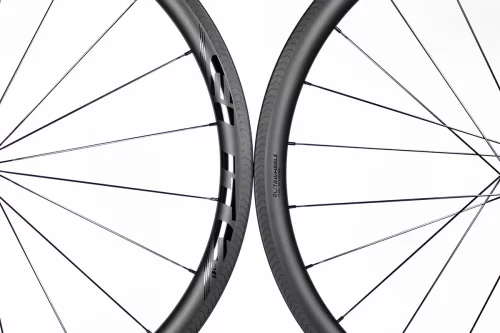

RIMS

KING has 38mm, 50mm, 60mm, 82mm and other different width wheel options. You can also choose different widths of front and rear wheels. The standard is equipped with Sapim CX Ray spokes.
All KING wheels can use clincher tires and are compatible with tubeless tires. 700*25C-28C tires are recommended.

Elitewheels KING Wheelset Competition Level Brake surface

Elitewheels KING Wheelset Competition Level Brake surface

BRAKE SURFACE

The braking surface is made of a mixture of high temperature resin at 270 degrees Celsius and T800 material, and a drainage groove is also added. No matter the weather is dry or wet, the braking surface has a good performance to ensure the braking distance on wet and slippery roads.

Elitewheels KING Wheelset Competition Level Hubs

Elitewheels KING Wheelset Competition Level Hubs

HUB

The KING series uses DT SWISS 240, the representative product of the top wheel hub master DT SWISS. It’s a hub that has won countless accolades. No controversy.

Elitewheels KING Wheelset Competition Level Rim type

Elitewheels KING Wheelset Competition Level Rim type

RIM TYPE

All Elitewheels are tubeless compatible.We design a R angle,The rounded edge makes tire installation easier and offers increased support during hard cornering with a softer edge and larger surface area.

Elitewheels KING

Can I choose different rim depth for front wheel and rear wheel, for example, front wheel 60mm, rear wheel 88mm?

Can I choose “without decal”?

Can I choose hidden nipple?

Can I choose other weave?For example, 3k, 12k?

Which brands’ freebodys are compatible with KING?

Are brake pads of other brands available for KING?

What size of tire can I use?

Can I use tubeless tires?

What’s the difference between KING series and SLT series?
