Description
Specifications
Rim | |
Wheel Size | 700c |
Tire Compatibility | Clincher/Tubeless |
Bead Type | Hooked |
Rim Depth | 38mm |
Inner Width | 17mm |
Outer Width | 28mm |
Hub | |
Front Hub Spacing | 12x100mm / QR x 100mm |
Rear Hub Spacing | 12x142mm / QR x 135mm |
Bearing | S&S Ceramic |
Brake Compatibility | Disc (Center Lock) |
Freehub Type | 4 pawls |
Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
Spoke | |
Front Spoke Pattern | 2X/Radial (2:1) |
Rear Spoke Pattern | 2X/1X (2:1) |
Spoke Count | 21F/24R |
Spoke Type | Pillar PA 1423 |
Nipple Type | Sapim Secure Lock |
Other | |
Weight(pair) | 1604g±30g |
Extras | Rim Tape(Installed), Tubeless Valves(Installed) |
Rider Weight Limit | 285lbs/130kg |
Recommended Tire Sizes | 700 x 23-33C |
Max Tire Pressure | 120psi |
Certification | CE Certified |

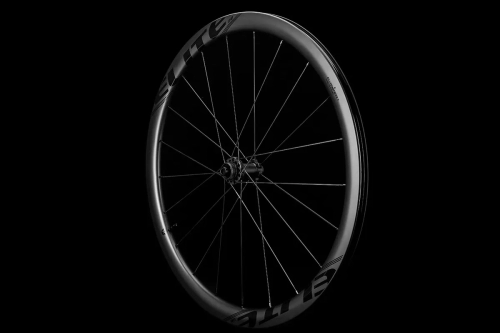

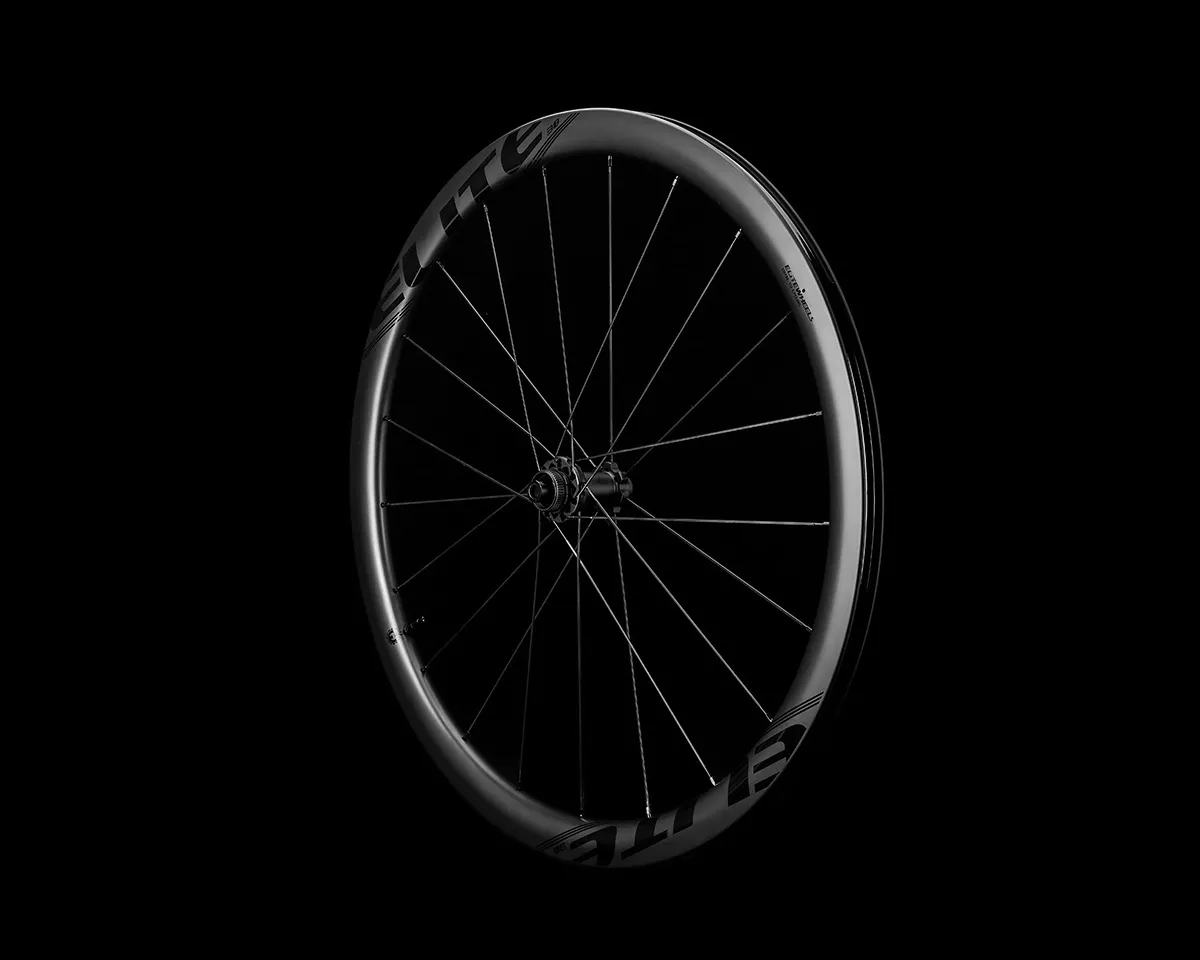

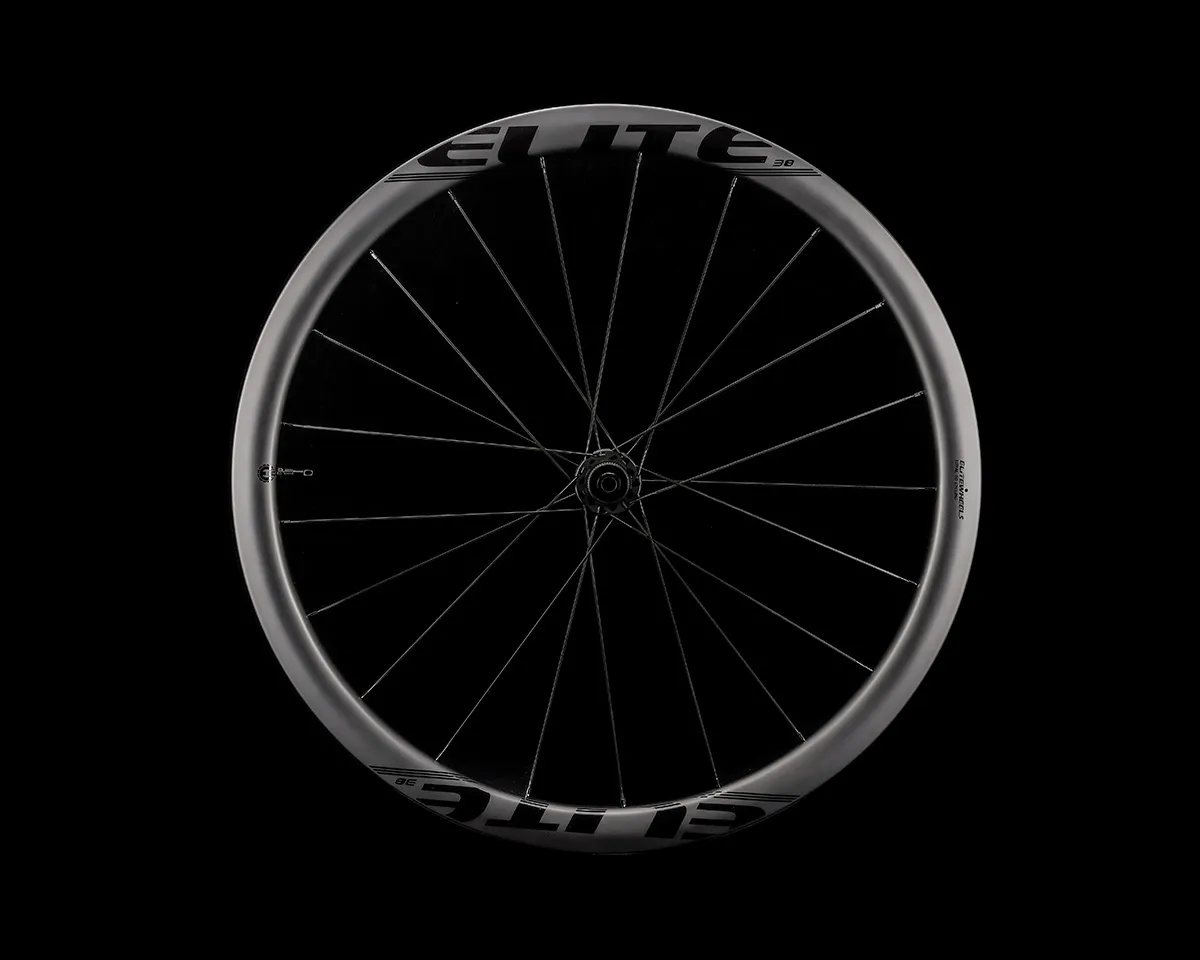

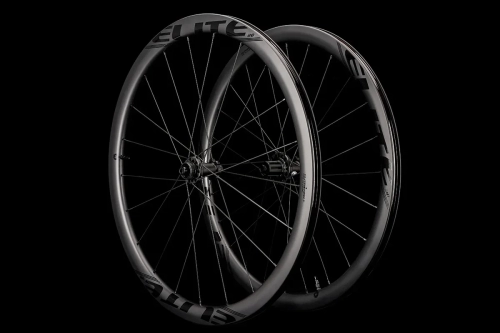

Marvel Disc

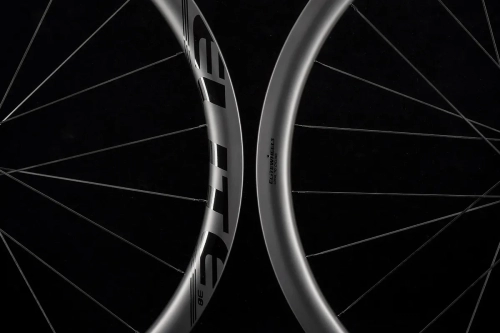

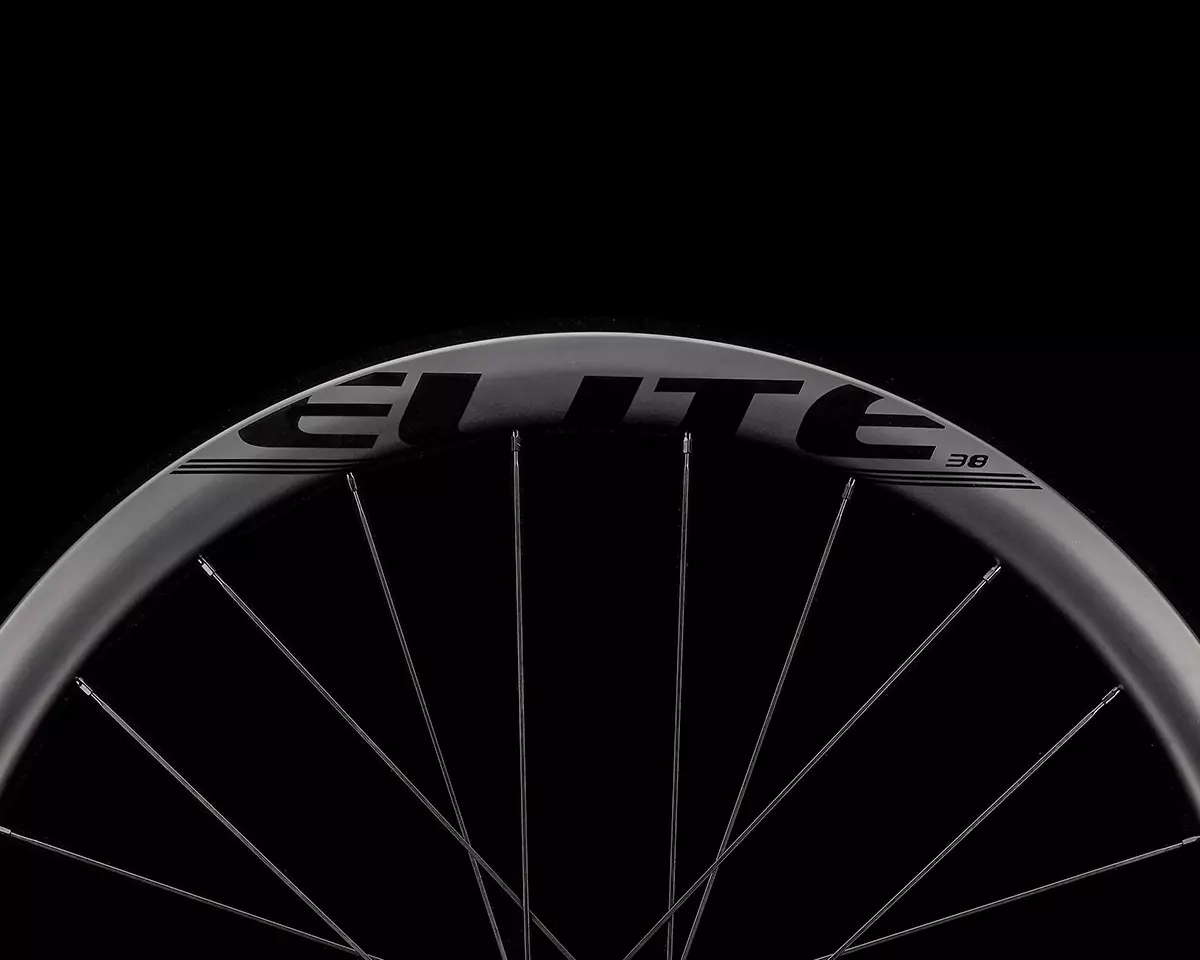

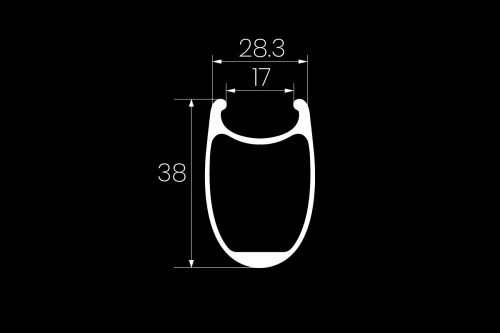

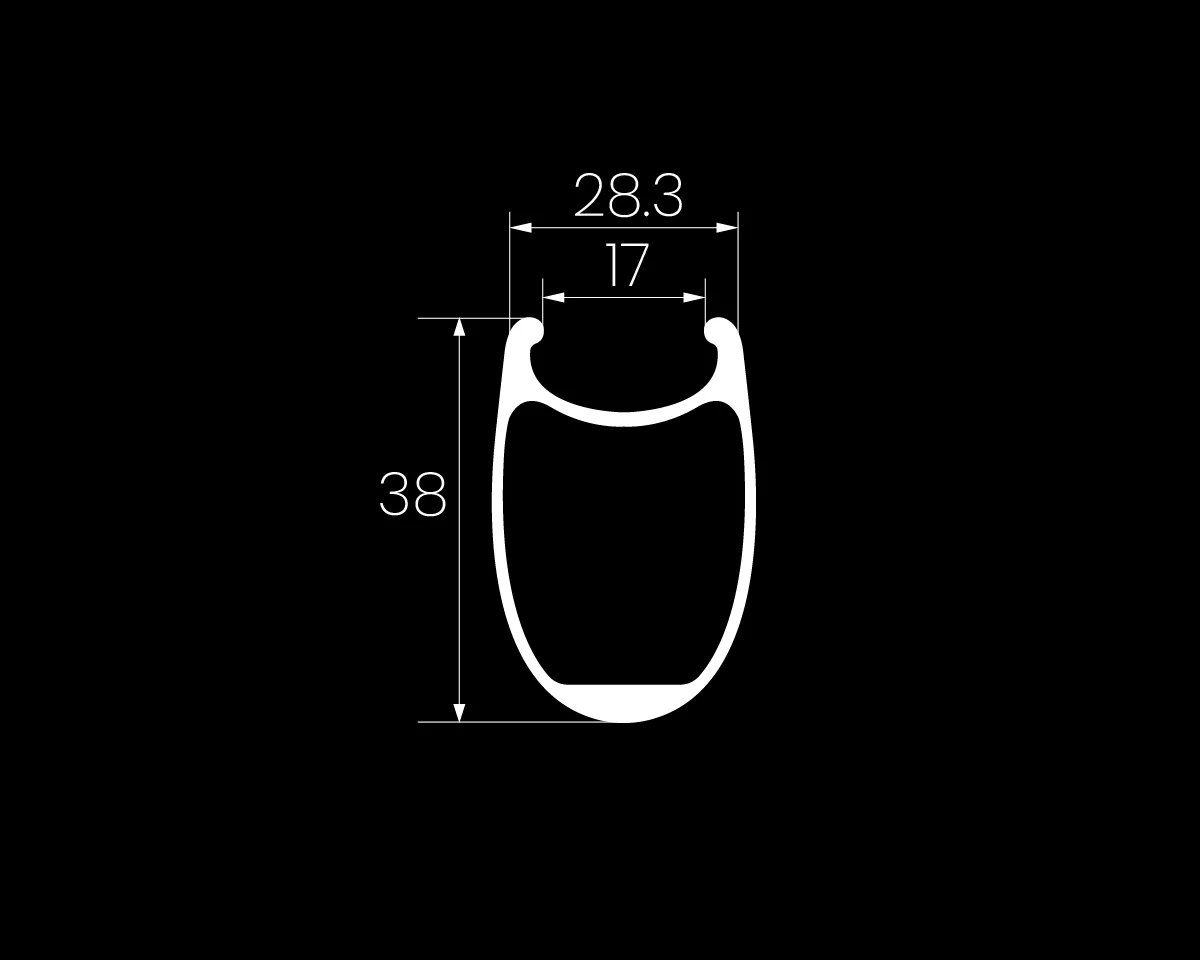

Marvel 38D RIM
RIMS
At Elitewheels, we design our Marvel wheels to match the needs of recreational cyclists. As opposed to alloy rims found on most road bikes, Marvel wheels are stronger, stiffer, much more more aerodynamic and significantly lighter. In fact, wheels play the biggest role in aerodynamics on a bicycle. As opposed to reducing weight elsewhere, a lighter rim saves rotational weight, making for a more agile feel and faster accelerations.

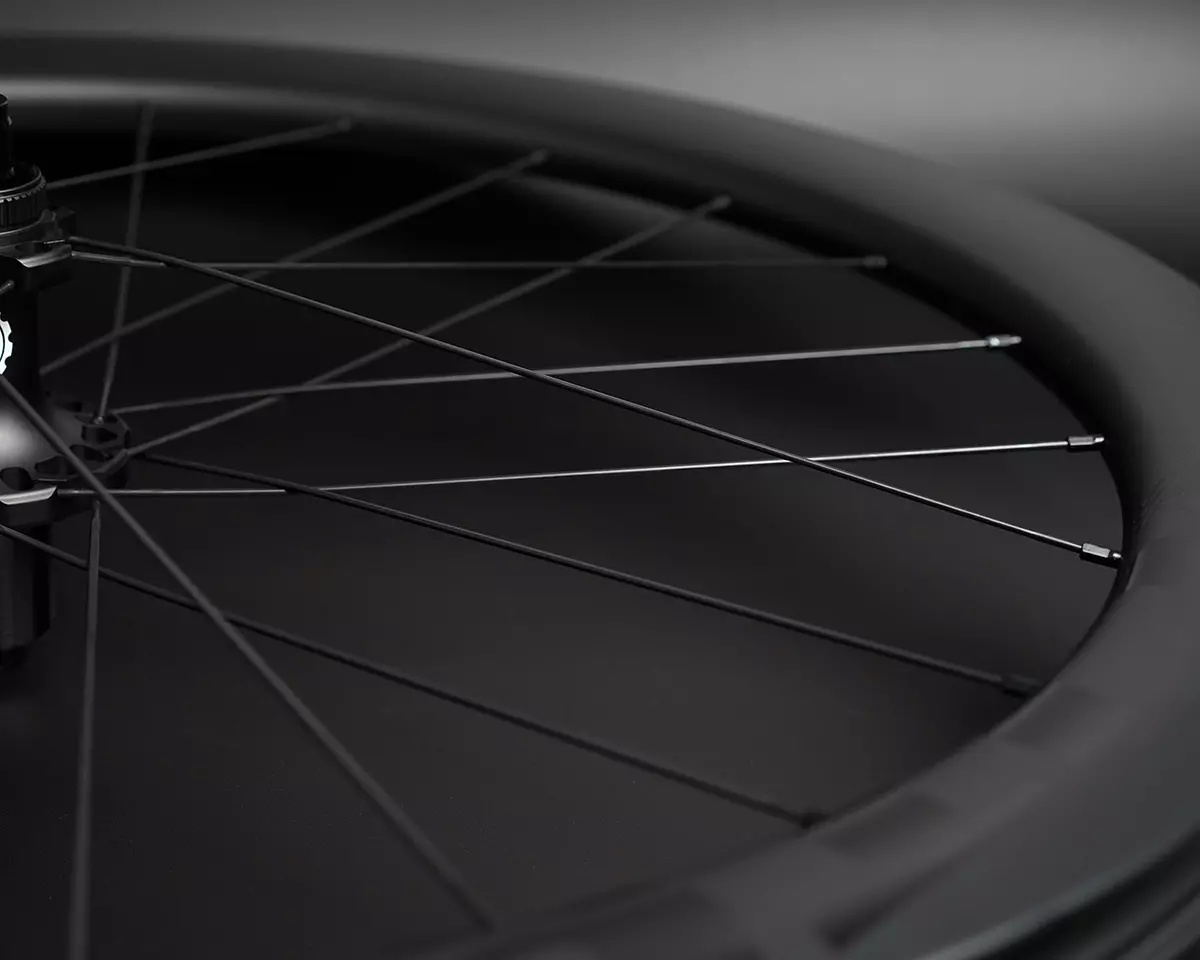

Marvel 38D Spoke
SPOKES
Choosing the right spoke to build a wheel is essential. We specifically selected Pillar PA 1423 aero bladed spokes. They are cold forged making them strong, allowing them to be able to withstand over 300kgf of tension.
Optional Upgrade: (Sapim CX-Ray spokes) and (Pillar Wing 20) spokes can be substituted for an extra cost, saving more than 90 grams off the complete wheelset.

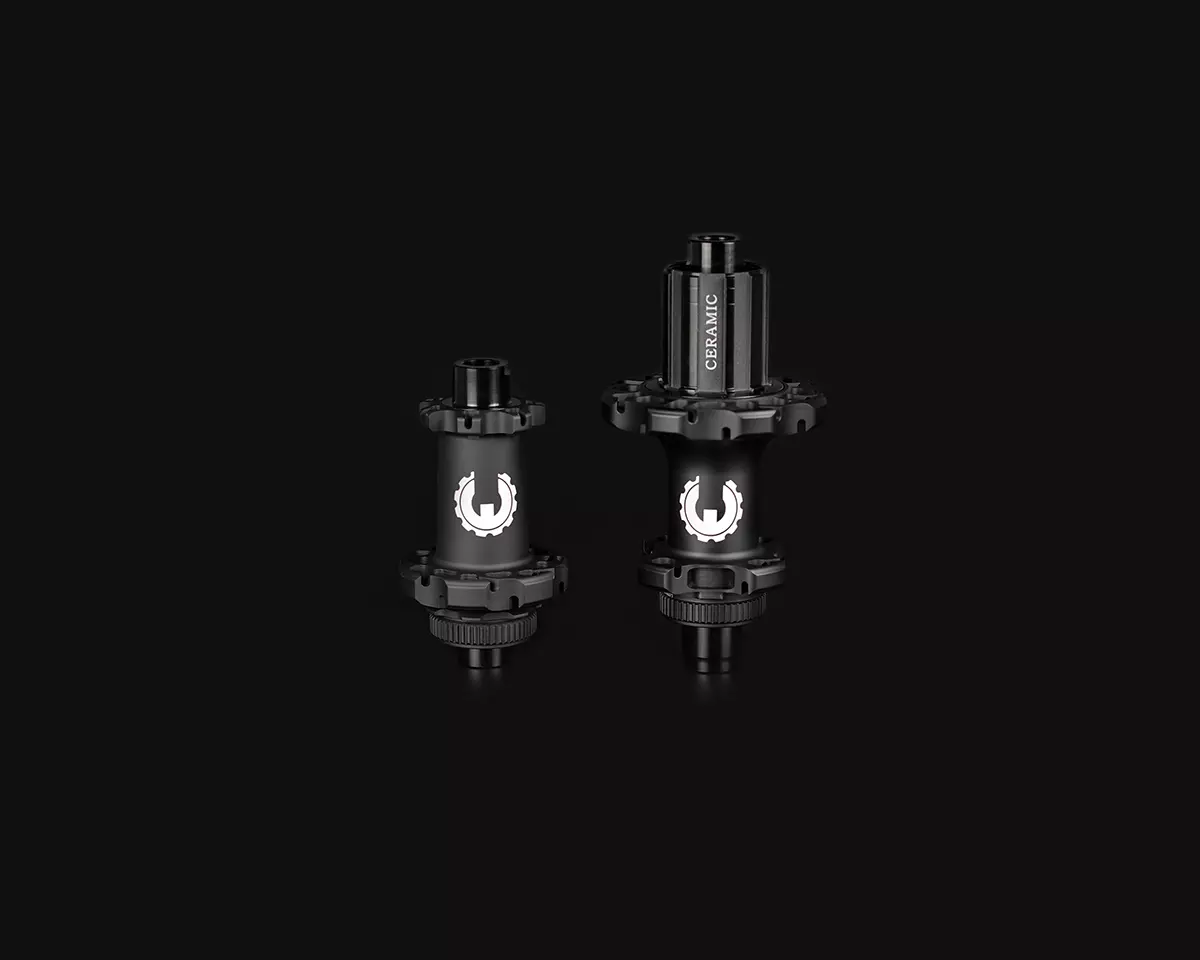

Marvel 38D Hub
PERFORMANCE HUB
To get the most out of this carbon wheelset, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.
Marvel 38D Ceramic bearings
CERAMIC BEARINGS
The Marvel 38D’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better durability over standard size ones. The use of large mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
Marvel 38D TUBELESS IN MIND
TUBELESS IN MIND
All of our wheels are tubeless ready with tubeless rim tape pre-installed. Each rim features our unique tubeless R-angle design, allowing for easier mounting. To make mounting tubeless tires even easier, rims are designed with bead seat retention ridges making inflation possible with just a floor pump.
In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
