Description
Specifications
| Rim | |
| Series | Marvel 60V |
| Wheel Size | 700c |
| Tire Compatibility | Clincher/Tubeless |
| Rim Depth | 60mm |
| Inner Width | 18.5mm |
| Outer Width | 28mm |
| Hub | |
| Front Hub Spacing | QR x 100mm |
| Rear Hub Spacing | QR x 130mm |
| Bearing | S&S Ceramic |
| Brake Compatibility | Rim Brake |
| Freehub Type | 4 pawls |
| Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
| Spoke | |
| Front Spoke Pattern | Radial |
| Rear Spoke Pattern | 2X/Radial (2:1) |
| Spoke Count | 18F/21R |
| Spoke Type | Pillar PA 1423 |
| Nipple Type | Sapim Secure Lock |
| Other | |
| Weight(pair) | 1695g±30g |
| Extras | Rim Tape(Installed), Tubeless Valves, Quick Releases, Brake Pads(2 Sets) |
| Rider Weight Limit | 285lbs/130kg |
| Recommended Tire Sizes | 700 x 23-33C |
| Max Tire Pressure | 120psi |

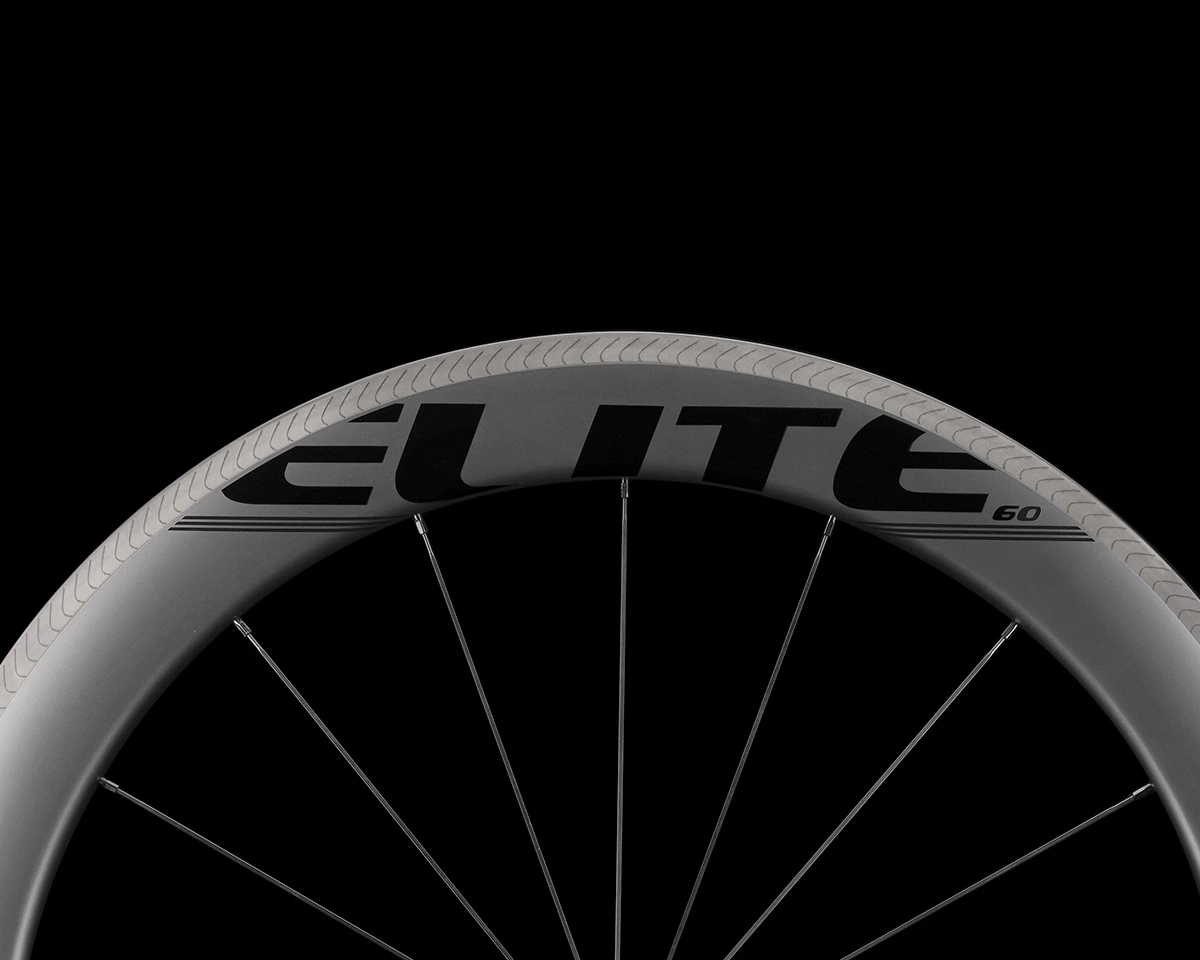

RIMS
RIMS
At Elitewheels, we design our Marvel wheels to match the needs of recreational cyclists. As opposed to alloy rims found on most road bikes, Marvel wheels are stronger, stiffer, much more more aerodynamic and significantly lighter. In fact, wheels play the biggest role in aerodynamics on a bicycle. As opposed to reducing weight elsewhere, a lighter rim saves rotational weight, making for a more agile feel and faster accelerations.

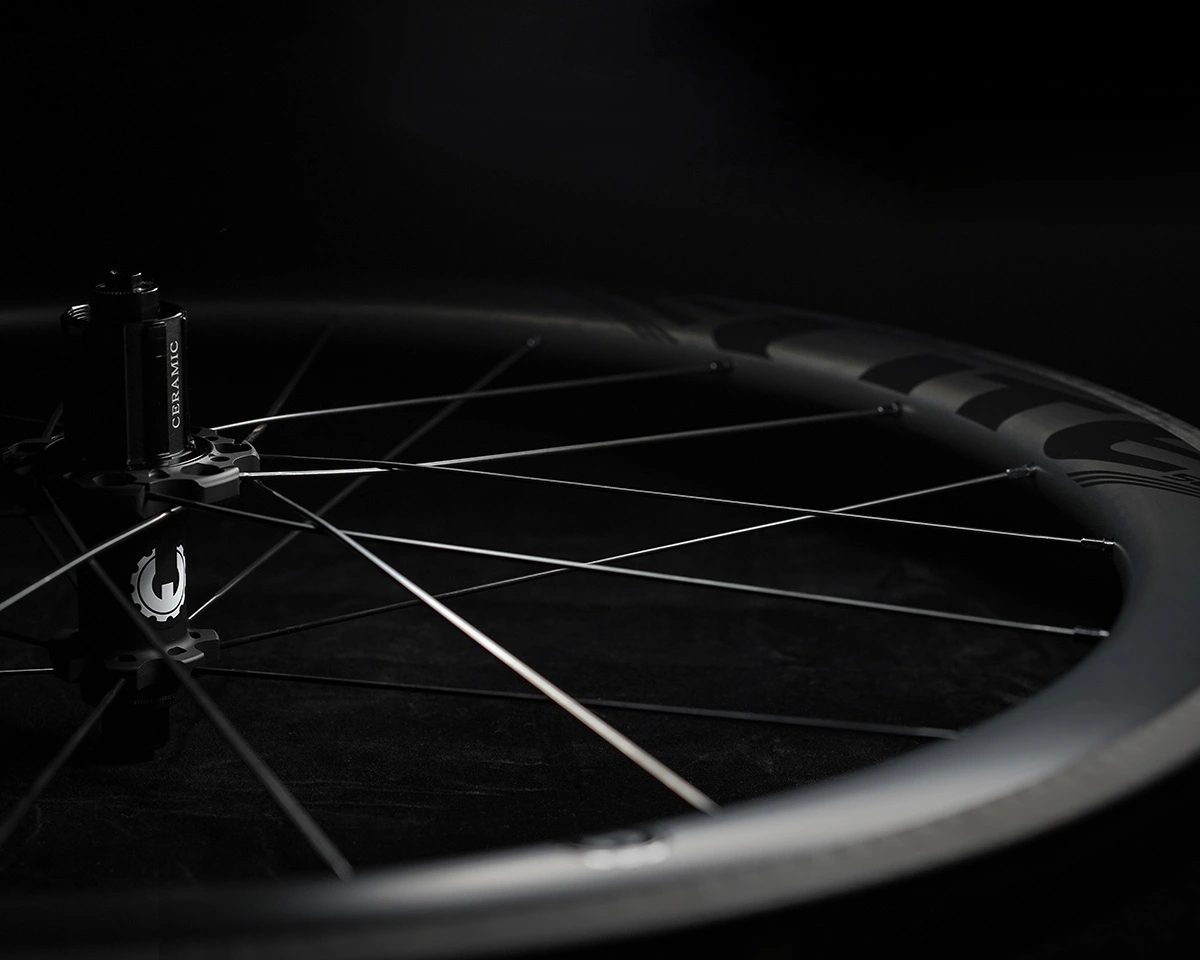

Marvel 60V Spoke
SPOKES
Choosing the right spoke to build a wheel is essential. We specifically selected Pillar PA 1423 aero bladed spokes. They are cold forged making them strong, allowing them to be able to withstand over 300kgf of tension.
Optional Upgrade: (Sapim CX-Ray spokes) and (Pillar Wing 20) spokes can be substituted for an extra cost, saving more than 90 grams off the complete wheelset.
Marvel 60V HUB
PERFORMANCE HUB
To get the most out of this carbon wheelset, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

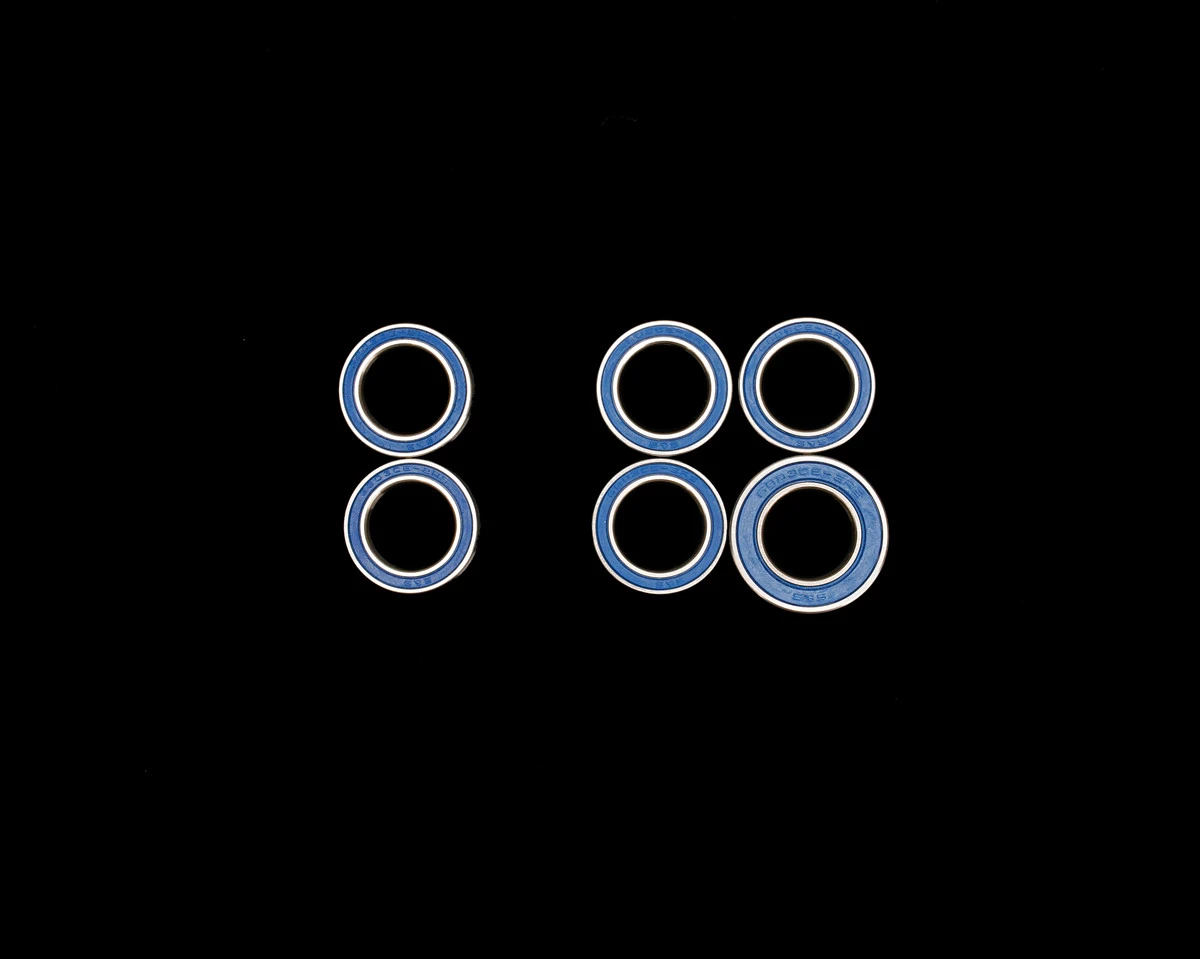

Marvel 60V Ceramic bearings
CERAMIC BEARINGS
The Marvel 60V’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better durability over standard size ones. The use of large mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
Read more about ceramic bearings.
Marvel 60V BRAKE SURFACE
BRAKE SURFACE
The Marvel 60V uses a blend of 270 ℃, high-temperature resin, developed by Elitewheels, and Japanese Toray T800 carbon fiber for the brake surface. This heat resistance ensures excellent braking performance even on long, steep descents. The brake track also features laser-etched grooves to clear water away, giving safe, consistent braking in wet conditions.
Marvel 60V TUBELESS IN MIND
TUBELESS IN MIND
All of our wheels are tubeless ready with tubeless rim tape pre-installed. Each rim features our unique tubeless R-angle design, allowing for easier mounting. To make mounting tubeless tires even easier, rims are designed with bead seat retention ridges making inflation possible with just a floor pump.
