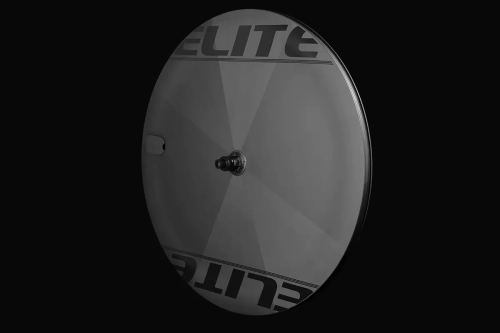

Velo TT Disc

Name: Velo TT Disc
SKU: 9941
Price: 769.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

The Velo TT is designed to give you the marginal gains you need to race against the clock in time trials and triathlons.

A high-performance wheel needs to look good. The wheel features a minimalistic UD carbon weave that is pleasing to the eyes.

When it comes to racing, we believe that every second counts. In our opinion, a good disc wheel should be more than aerodynamic.

*Instructions for the first assembly: Tubeless tires must be ridden for at least 25 km directly after the sealant is added so as to ensure they are air tight.

*Availability Status: Usually shipped in 7-10 days.

US$769.00

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Which freehub should I choose?

Optional accessories

Velo TT Disc

This item: Velo TT Disc

US$769.00

Centerlock to 6-Bolt Adapters

Disc Wheel Pump Adapter

Rim
Series	Velo TT
Wheel Size	700c
Tire Compatibility	Clincher/ Tubeless
Inner Width	18.2mm
Outer Width	25mm
Rim Profile	Asymmetric

Hub
Bearing Size	68022 152672
Rear Hub Spacing	12*142mm
Bearing	Enduro Steel
Brake Compatibility	Disc Brake
Freehub Type	Ratchet System 36T
Freehub Compatibility	Shimano / SRAM XDR

Other
Extras	Tubeless Valves(Installed)
Weight	1250±50g (without tubeless valves and rim tape)
Certification	UCI Approved, CE Certified
Rider Weight Limit	310lbs/140kg
Compatible Tire Sizes	700 x 23-35c
Recommended Tire Sizes	700 x 23-28c

MARGINAL GAINS

Elitewheels is a big proponent of marginal gains and knows that many small improvements can add up. Because of this, the Velo TT wheel incorporates a valve cutout cover that the rider can choose to use. Wind tunnel testing has shown that it can save the precious seconds in a time trial.

As compared to our previous TT wheels, the new Velo TT features a wider internal rim width without compromising the wheel’s aerodynamics. This allows for wider tires to be used, improving comfort on long time trials and less than optimal road surfaces as well as increasing grip in wet conditions.

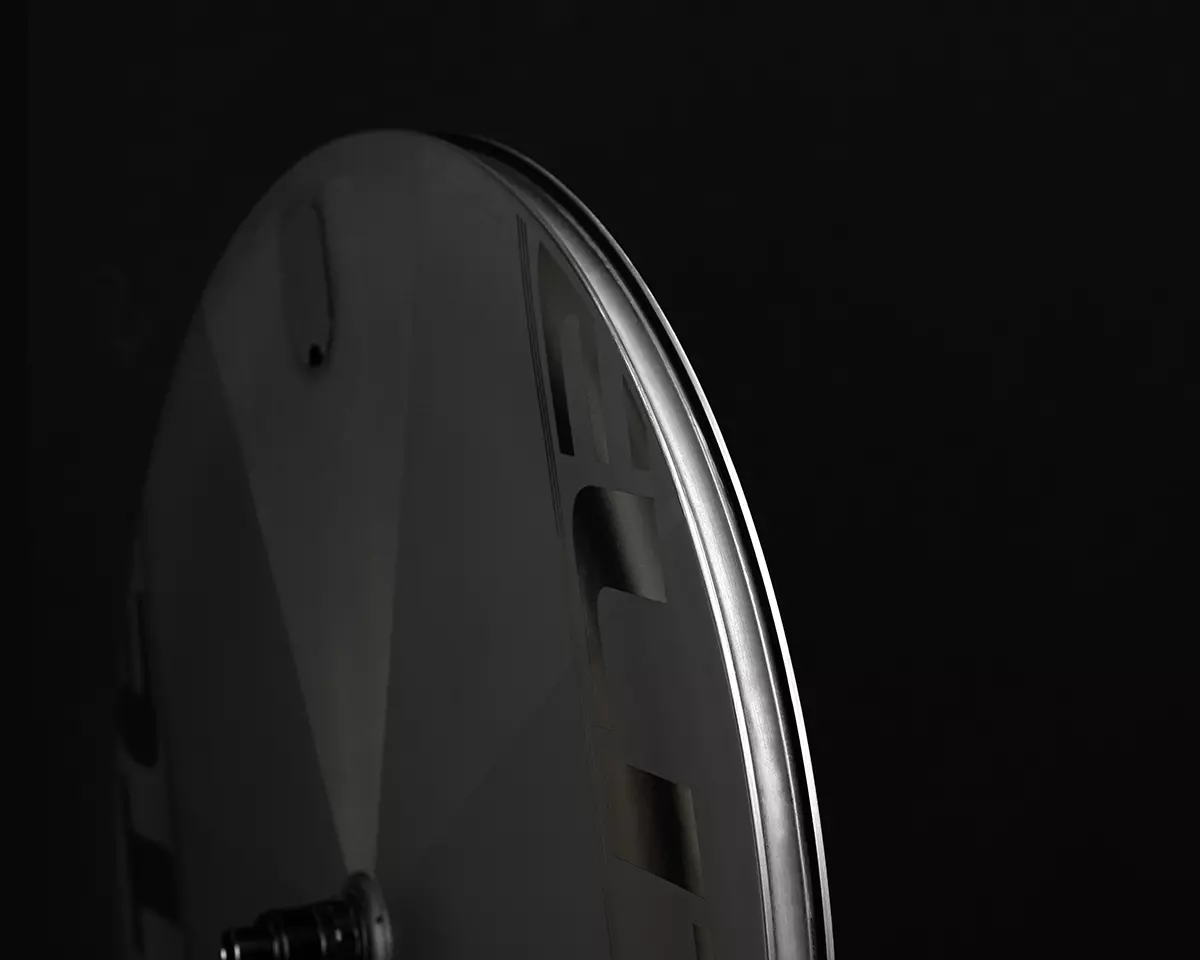

PMI CORE

The interior is consists of a lightweight, high-density aerospace PMI (polymethacrylimide) foam core. It offers all of the benefits of honeycomb type cores but with improved strength and impact resistance.

As opposed to using other core materials, our specially machined PMI allows us to design a lighter weight wheel that is exceptionally stiff. It is also fatigue resistant, so you can continue to use the wheel season after season, without any loss in performance.

PERFORMANCE HUB

The front and rear hubs are made of 7075 aluminum which is known for it’s high strength. They both incorporate Enduro bearings. The lightweight freehub uses a 36t ratchet system.

Discover the Hub Sound Here

BRAKEING SURFACE

The Velo TT Rim’s braking surface uses a blend of high-temperature resin developed by Elitewheels and Japanese Toray T800 carbon fiber. This ensures safe and effective braking even on long descents.

Which brands’ freehubs are compatible with the Velo TT DISC?+

Since the hubs used in Velo wheels are manufactured in Elitewheels’ factory, freehubs from other brands are incompatible. The hubs used in Velo wheels have passed our 20,000km test.

Can I use disc brake wheels on my QR (quick release) compatible frame?+

Yes. When placing the order for your disc brake wheelset, please leave a note saying that you would like quick releases instead of thru-axles.

Which cassettes require the 1.85mm spacer?+

1.85mm spacers are required for Shimano 9/10-speed cassettes fitted on Shimano HG freehubs. Spacers are also required when pairing most SRAM XD MTB cassettes with SRAM XDR freehubs.

Why don't our disc brake wheelsets come with thru-axles?+

Unlike quick releases, there are many thru-axle standards. What you need depends on your frame's make and model. There are many thread types, such as M12x1.0mm, M12x1.5mm, M12x1.75mm, etc... For example, M12 means the outer thread diameter is 12mm, and 1.0mm means the thread pitch is 1.0mm. Because of the variety of standards, we do not provide thru-axles. If you need a new thru-axle(s), please contact your frame brand for more information.

Can I change to 6-bolt?+

Yes. The Velo TT Disc wheels use center lock hubs by default, but if you want to use 6-bolt, please click the link and add the Center-lock to 6-bolt Adapters to your cart with the wheelset.

Are ceramic bearings easily broken?+

As all our our hubs have high-precision manufacturing tolerances, bearing play is significantly reduced. Because of this, the likelihood of bearings being damaged is extremely low.

What does the rider weight limit include?+

The rider weight limit includes the total weight of the rider, bike, gear, and any other accessories. Please do not exceed this weight.

What tire pressures should I run?+

The best tire pressure for you depends on many factors: the rim width, type of bike and tires, rider weight, road conditions and weather conditions. Please see our user guide for more information.

How strong are your carbon rims? What happens if I break one?+

Every one of our carbon rims has been strictly tested before shipment. We are so confident in the quality of our rims that we offer a 3-year warranty on every one. We also offer a crash replacement policy. To learn more, please refer to our warranty page.

Where can I find information on ordering and shipping?+

Please visit our FAQ page here.

Essential Safety Information+

For essential safety information, please read our Consumer Advice.

1 review for Velo TT Disc

Rated 5 out of 5
Heynrich du Toit (verified owner) – January 28, 2025
I paired the Velo TT Disc with a Drive 65D front wheel for triathlon races. Going forward, I will be pairing it with my Helix front wheel. The experience was brilliant and my bike performances during my triathlon races reflected that. The build quality, performance and installation was flawless. I can certainly recommend this disc for anyone looking for some additional speed for either TTs or Triathlons.
(1) (0)
- Elitewheels (store manager) – February 5, 2025
  Hello Heynrich. Thank you for sharing your experience with the Velo TT Disc and the Drive 65D front wheel and soon to be Drive Helix. It is great to hear that you have had a great eperience with the wheels during your triathlon races. We are glad that you are satisfied with the build quality, perofrmance, and easy of installation.
  Happy riding!
