The Velo TT is designed to give you the marginal gains you need to race against the clock in time trials and triathlons.

A high-performance wheel needs to look good. The wheel features a minimalistic UD carbon weave that is pleasing to the eyes.

When it comes to racing, we believe that every second counts. In our opinion, a good disc wheel should be more than aerodynamic.

*Instructions for the first assembly: Tubeless tires must be ridden for at least 25 km directly after the sealant is added so as to ensure they are air tight.

*Availability Status: Usually shipped in 7-10 days.

US$769.00

Be the first to leave a review.

Which freehub should I choose?

Optional accessories
Velo TT Rim
This item: Velo TT Rim
US$769.00
US$769.00
Black-Prince-Bake-Pads
Black Prince Brake Pads
-
+
Original price was: US$40.00.Current price is: US$32.00.
Disc Wheel Pump Adapter
Disc Wheel Pump Adapter
-
+
Original price was: US$12.00.Current price is: US$8.00.
Rim
SeriesVelo TT
Wheel Size700c
Tire CompatibilityClincher/ Tubeless
Inner Width18.2mm
Outer Width25mm
Rim ProfileAsymmetric
Hub
Bearing Size6802*2 15267*2
Rear Hub SpacingQR*130mm
BearingEnduro Steel
Brake CompatibilityRim Brake
Freehub TypeRatchet System 36T
Freehub CompatibilityShimano / SRAM XDR
Other
ExtrasQuick Release,Brake Pads(1 pair),Tubeless Valves(Installed)
Weight1230±50g (without tubeless valves and rim tape)
CertificationCE Certified
Rider Weight Limit310lbs/140kg
Compatible Tire Sizes700 x 23-35c
Recommended Tire Sizes700 x 23-28c

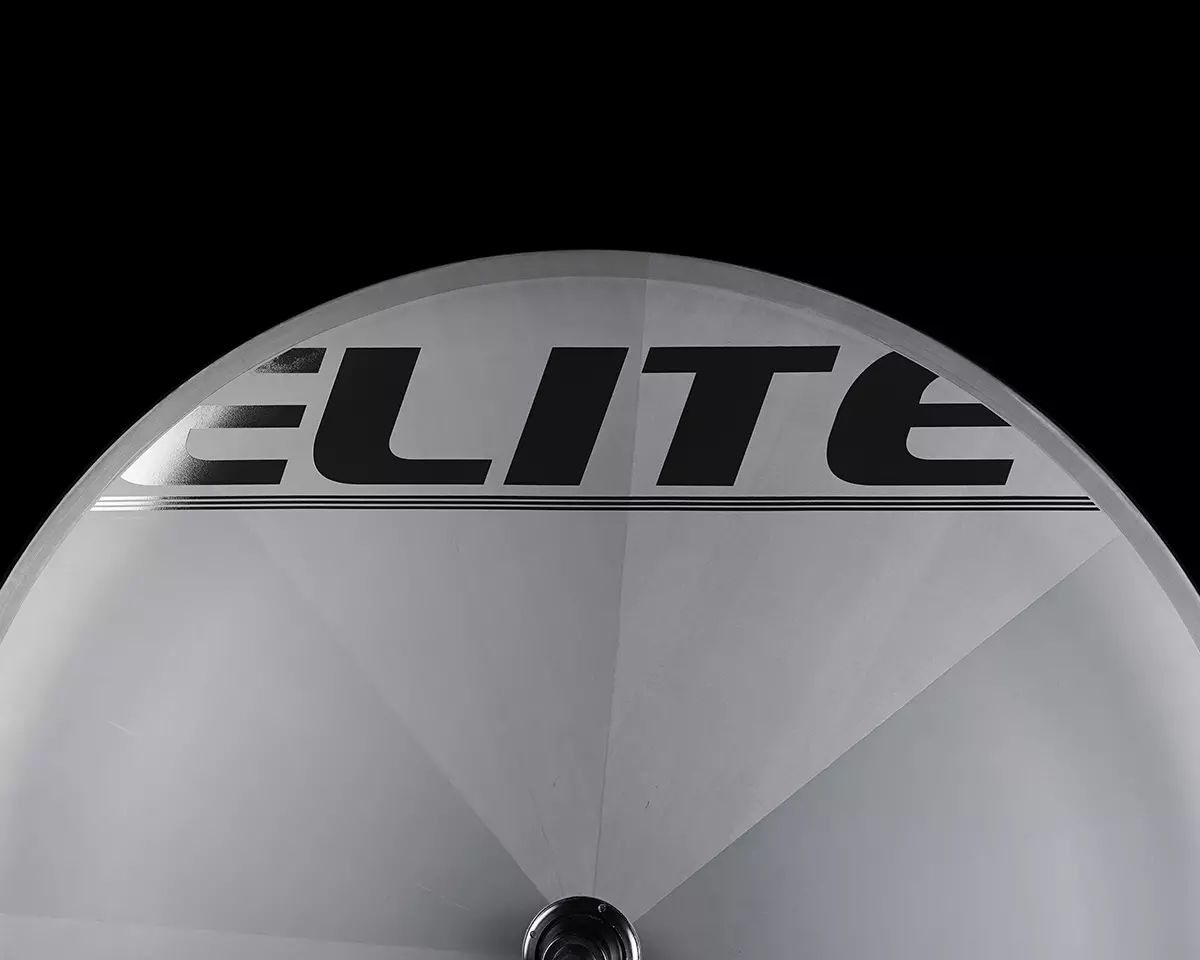

Velo TT Rim MARGINAL GAINS

MARGINAL GAINS

Elitewheels is a big proponent of marginal gains and knows that many small improvements can add up. Because of this, the Velo TT wheel incorporates a valve cutout cover that the rider can choose to use. Wind tunnel testing has shown that it can save the precious seconds in a time trial.

As compared to our previous TT wheels, the new Velo TT features a wider internal rim width without compromising the wheel’s aerodynamics. This allows for wider tires to be used, improving comfort on long time trials and less than optimal road surfaces as well as increasing grip in wet conditions.

Velo TT Rim MARGINAL GAINS

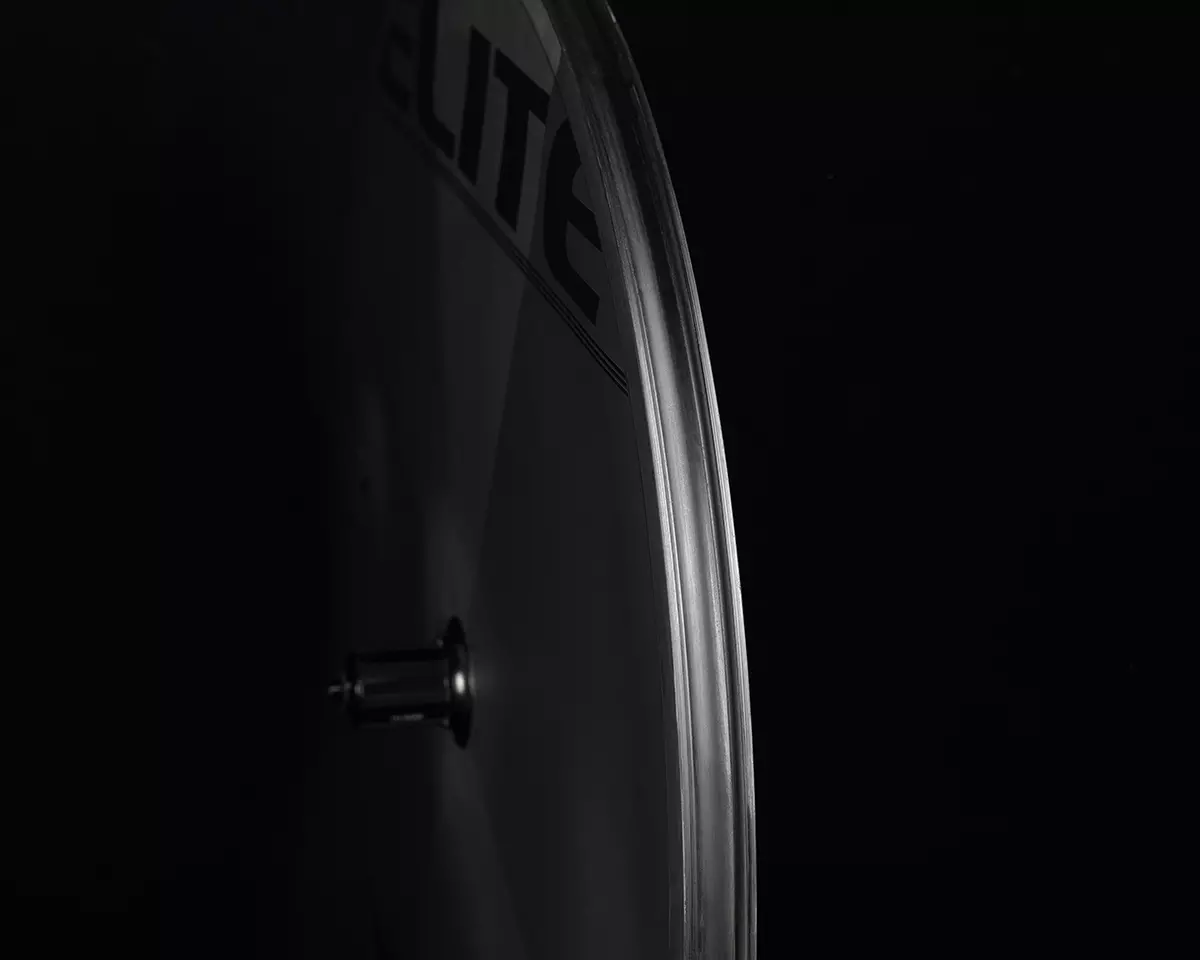

Velo TT Rim PMI CORE

PMI CORE

The interior is consists of a lightweight, high-density aerospace PMI (polymethacrylimide) foam core. It offers all of the benefits of honeycomb type cores but with improved strength and impact resistance.

As opposed to using other core materials, our specially machined PMI allows us to design a lighter weight wheel that is exceptionally stiff. It is also fatigue resistant, so you can continue to use the wheel season after season, without any loss in performance.

Velo TT Rim

PERFORMANCE HUB

The front and rear hubs are made of 7075 aluminum which is known for it’s high strength. They both incorporate Enduro bearings. The lightweight freehub uses a 36t ratchet system.

Discover the Hub Sound Here

Velo TT Rim
Velo TT Rim BRAKING SURFACE

BRAKEING SURFACE

The Velo TT Rim’s braking surface uses a blend of high-temperature resin developed by Elitewheels and Japanese Toray T800 carbon fiber. This ensures safe and effective braking even on long descents.

Which brands’ freehubs are compatible with the Velo TT Rim?+

Since the hubs used in Velo wheels are manufactured in Elitewheels’ factory, freehubs from other brands are incompatible. The hubs used in Velo wheels have passed our 20,000km test.

Which cassettes require the 1.85mm spacer?+

1.85mm spacers are required for Shimano 9/10-speed cassettes fitted on Shimano HG freehubs. Spacers are also required when pairing most SRAM XD MTB cassettes with SRAM XDR freehubs.

Are brake pads included? Can I use brake pads from other brands?+

Yes, we include two pairs of brake pads along with every rim brake wheelset. The included brake pads are for general road conditions only. If you often descend on long climbs, we recommend upgrading them to SwissStop Flash EVO Black Prince brake pads, which are available on our website. They provide improved braking performance and contribute to lower brake track temperatures. Please refer to this webpage for more information.

Are ceramic bearings easily broken?+

As all our our hubs have high-precision manufacturing tolerances, bearing play is significantly reduced. Because of this, the likelihood of bearings being damaged is extremely low.

What does the rider weight limit include?+

The rider weight limit includes the total weight of the rider, bike, gear, and any other accessories. Please do not exceed this weight.

What tire pressures should I run?+

The best tire pressure for you depends on many factors: the rim width, type of bike and tires, rider weight, road conditions and weather conditions. Please see our user guide for more information.

How strong are your carbon rims? What happens if I break one?+

Every one of our carbon rims has been strictly tested before shipment. We are so confident in the quality of our rims that we offer a 3-year warranty on every one. We also offer a crash replacement policy. To learn more, please refer to our warranty page.

Where can I find information on ordering and shipping?+

Please visit our FAQ page here.

Essential Safety Information+

For essential safety information, please read our Consumer Advice.
