Drive DB Mixed Depth 50-60D
Drive DB Mixed Depth
Drive DB Mixed Depth
Drive Mixed Depth Disc Brake - Image 4
Drive Mixed Depth Disc Brake - Image 5
Drive Mixed Depth Disc Brake - Image 6

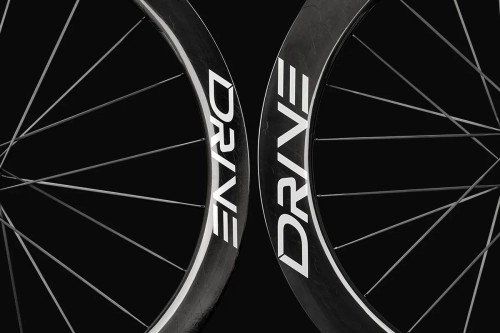

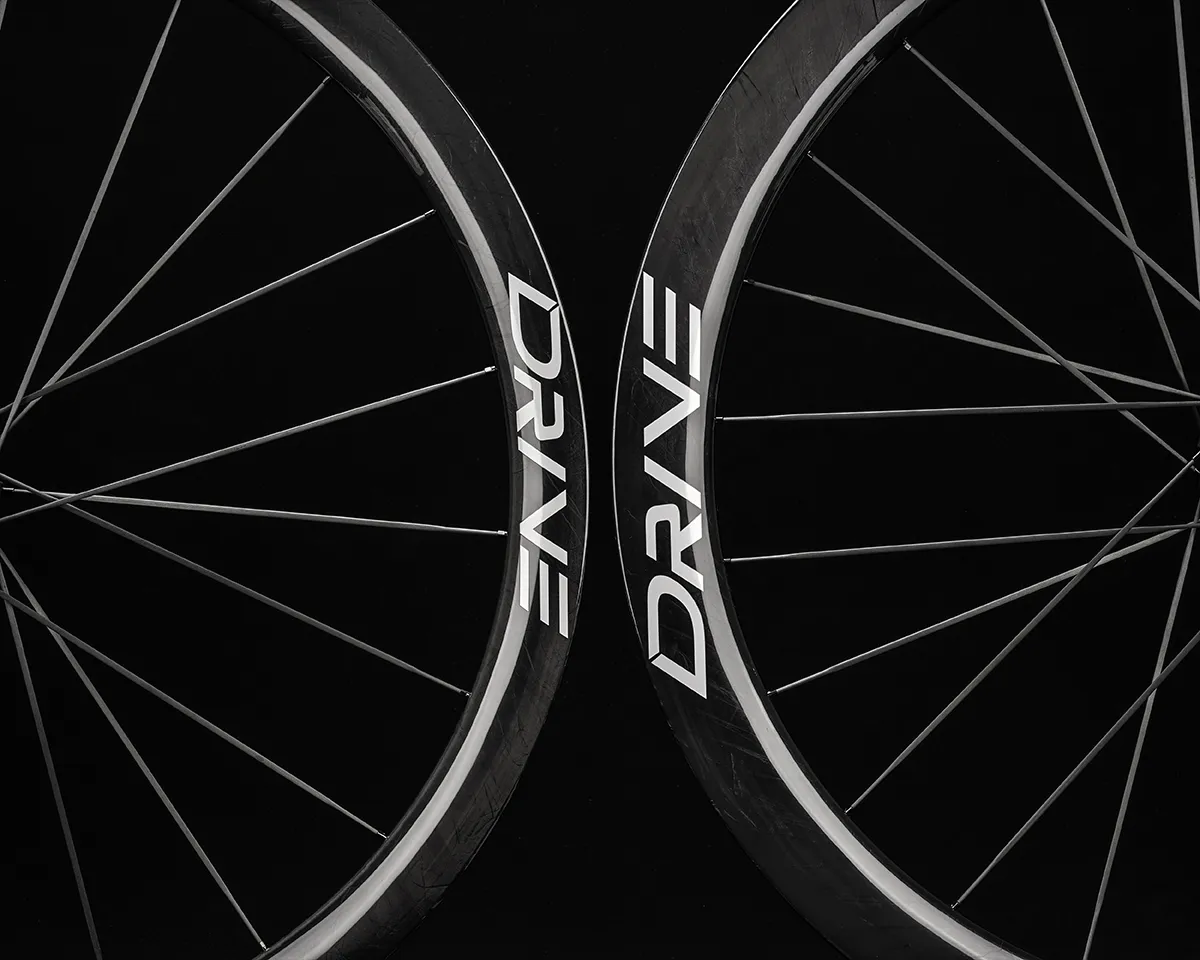

Drive Mixed Depth Disc Brake

Having a mixed depth wheelset can improve the aerodynamics and handling of a bike. A shallower front wheel can make a bike easier to control as it is more resistant to crosswinds, while a deep section rear wheel can reduce aerodynamic drag. Mixed depth wheels are the favorite or many pro and experienced riders, as it can make for a more balanced ride.

Now we give riders the choice to customize their own wheelset, allowing for the front and rear wheel rim depths to be selected independently.

– Carbon Spoke Disc Brake Wheelset
– Brake Interface: Center Lock by default
– Axle: Thru axle by default (Need QR adapters?)

*Availability Status: Out of stock

US$1,189.00

Out of stock

(6 customer reviews)

Which freehub should I choose?

Optional accessories
Drive DB Mixed Depth 50-60D
This item: Drive Mixed Depth Disc Brake
US$1,189.00
US$1,189.00
X-RIDE: Extended Warranty
X-RIDE: Extended Warranty
-
+
US$100.00
Center-lock to 6-bolt Adapters
Centerlock to 6-Bolt Adapters
-
+
Original price was: US$16.00.Current price is: US$12.00.
Center-lock Lockrings
Centerlock Lockrings (1 Set)
-
+
Original price was: US$9.00.Current price is: US$6.00.
Rim
Wheel Size700c
Tire CompatibilityClincher/ Tubeless
Bead TypeHooked
Rim DepthRefer to Depth Options
Inner Width21mm
Outer Width28mm
Other
Rim FinishGlossy Marbling Black
ExtrasPre-installed Rim Tape & Tubeless Valves
Weight (Pair)Refer to FAQ (without tubeless valves and rim tape)
Rider Weight Limit275lbs/125kg
Compatible Tire Sizes700 x 25-38C
Recommended Tire Sizes700 x 25-30C
CertificationUCI Approved, CE Certified
Hub
Front Hub Spacing12x100mm
Rear Hub Spacing12x142mm
BearingS&S Ceramic
Brake CompatibilityDisc (Center Lock)
Freehub Type4 Pawls
Freehub CompatibilityShimano / SRAM XDR / Campagnolo
Spoke
Front Spoke Pattern2X/Radial (2:1)
Rear Spoke Pattern2X/1X (2:1)
Spoke Count21F/24R
Spoke TypeCarbon Spoke (3.2mm)
Nipple TypeAlloy Secure Lock
Spare Spokes4PCS

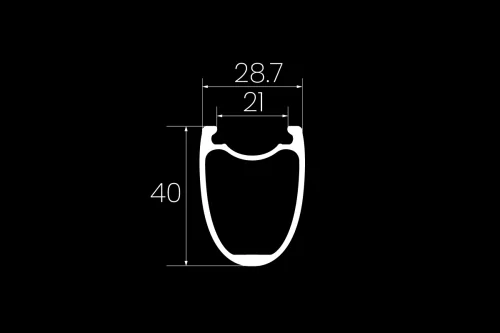

Drive 40mm disc brake carbon spoke wheelset Rims

DRIVE RIMS

A Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best, we incorporate our own in-house UNI carbon fiber, a specific ratio of T700 and T800 carbon fiber (*Read more about UNI technology), making it not only strong, but also especially light and stiff. The U/V-shaped rim profile of the Drive DB Mixed Depth wheels was chosen to make the rims aero as well as stable in windy conditions. The 21mm inner rim width can accommodate wider tires for those looking for more grip and comfort.

Drive 40mm disc brake carbon spoke wheelset Rims
Drive 40D performance hub

PERFORMANCE HUB

To get the most out of carbon fiber spokes, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

Discover the Hub Sound Here

Drive 40mm disc brake wheelset Carbon Spokes

CARBON SPOKES

What separates Drive wheels from most others is its use of high-modulus carbon spokes. The 3.3mm wide aero bladed spokes offer a 7% increase lateral response as compared to equivalent steel spokes. The spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give it a double-locking effect.

*Read more about CARBON SPOKES.

Drive 40mm disc brake wheelset Carbon Spokes
Drive 40D ceramic bearings

CERAMIC BEARINGS

The 65D’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

Read more about ceramic bearings.

What is the weight of different mixed depth wheelsets?+

DRIVE 40/45D: 1270±30g DRIVE 40/50D: 1280±30g DRIVE 45/50D: 1290±30g DRIVE 50/65D: 1380±30g

Which brands’ freehubs are compatible with Drive wheelsets?+

Since the hubs used in Drive wheels are manufactured in Elitewheels’ factory, freehubs from other brands are incompatible. The hubs used in Drive wheels have passed our 20,000km test. As long as you ride in normal conditions, the possibility of the freehub getting damaged is very low. If you ride in extreme conditions, we recommend you clean the freehub every 3000km.

Which cassettes require the 1.85mm spacer?+

1.85mm spacers are required for Shimano 9/10-speed cassettes fitted on Shimano HG freehubs. Spacers are also required when pairing most SRAM XD MTB cassettes with SRAM XDR freehubs.

Can I use disc brake wheels on my QR (quick release) compatible frame?+

Yes. Please click the link and add the Thru-axles to QR Adapters to your cart with the wheelset.

Why don't our disc brake wheelsets come with thru-axles?+

Unlike quick releases, there are many thru-axle standards. What you need depends on your frame's make and model. There are many thread types, such as M12x1.0mm, M12x1.5mm, M12x1.75mm, etc... For example, M12 means the outer thread diameter is 12mm, and 1.0mm means the thread pitch is 1.0mm. Because of the variety of standards, we do not provide thru-axles. If you need a new thru-axle(s), please contact your frame brand for more information.

Is there an internal nipple option?+

Internal nipples are not available because the nipples for carbon spokes are specially processed. The contact angle between spokes and spoke holes is extremely important. Spokes should not directly come into contact the rim directly, otherwise there would be a high likelihood of having spoke break.

Can I change to 6-bolt?+

Yes. The Drive wheels use center lock hubs by default, but if you want to use 6-bolt, please click the link and add the Center-lock to 6-bolt Adapters to your cart with the wheelset.

Are ceramic bearings easily broken?+

As all our our hubs have high-precision manufacturing tolerances, bearing play is significantly reduced. Because of this, the likelihood of bearings being damaged is extremely low.

What does the rider weight limit include?+

The rider weight limit includes the total weight of the rider, bike, gear, and any other accessories. Please do not exceed this weight.

What tire pressures should I run?+

The best tire pressure for you depends on many factors: the rim width, type of bike and tires, rider weight, road conditions and weather conditions. Please see our user guide for more information.

How strong are your carbon rims? What happens if I break one?+

Every one of our carbon rims has been strictly tested before shipment. We are so confident in the quality of our rims that we offer a 3-year warranty on every one. We also offer a crash replacement policy. To learn more, please refer to our warranty page.

Where can I find information on ordering and shipping?+

Please visit our FAQ page here.

Essential Safety Information+

For essential safety information, please read our Consumer Advice.

What happens if a carbon spoke breaks?+

Our threaded carbon spokes have been designed to last. In the event that a carbon spoke breaks, replacement is easy. Each wheel comes with replacement spokes that can be replaced like traditional steel spokes. For more information, please see this article. For information on where to get spokes replaced, please contact our customer service.

Are carbon spokes covered under warranty?+

Our standard 3-year warranty covers carbon spokes if they are damaged by non-external factors. This means they are only covered if there is a manufacturing defect. Click here for more information on our warranty.
