Description
Specification
Rim | |
Series | Five S |
Wheel Size | 700c |
Tire Compatibility | Clincher/Tubeless |
Rim Depth | 65mm |
Inner Width | 16.2mm |
Outer Width | 25mm |
Hub | |
Front Hub Spacing | QR x 100mm |
Rear Hub Spacing | QR x 130mm |
Bearing | NBK |
Brake Compatibility | Rim Brake |
Freehub Type | 3 Pawls |
Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
Other
Extras | Quick Releases, Brake Pads(2 Sets) |
Weight (Clincher) | F.960±50g R.1010±50g |
Weight (Tubular) | F.930±50g R.990±50g |
Rider Weight Limit | 310lbs/140kg |
Recommended Tire Sizes | 700 x 23-28c |
Intended Use | Triathlon/Time Trial |
FEATURE:
Designed specifically for triathlon and time trial athletes, the Five S wheel excels in every aspect.
It has better cornering grip, better compliance, reduced rolling resistance, aerodynamics design, better acceleration and braking performance. After test-rides by many professional cyclists, the result is that it is invincible on flat roads and has obvious advantages on uphill roads.
5 spoke carbon bike wheel
Wheel:
Five S is a threat. With the latest 5-spoke design, the blade spokes are more aerodynamically curved. The rim depth of 65mm is also the optimal depth for front wheel wind protection, which not only ensures high strength, but also improves rolling speed and efficiency.
5 spoke carbon bike wheels Rim type
Rim Type
The Five S is compatible with any tubeless or tubular tire from 23 up to 28c. The design of the R angle makes the edge more rounded. This makes tire installation easier while also providing greater support in hard corners.

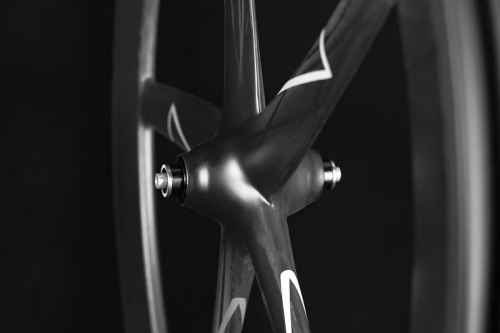

5 spoke carbon bike wheels power transmission
Power Transmission
Five S uses Uses Taiwan chosen hub system, 3 pawls freebody. Standard is qr axle. Shimano or Campagnolo freebody can be chosen.
5 spoke carbon bike wheels Brake surface
Brake Surface
The brake surface uses a mixture of 270 degrees Celsius high temperature resin and T800 material.
