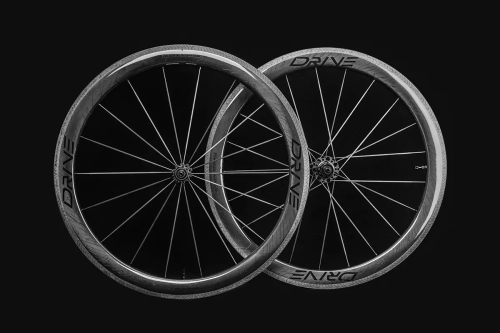

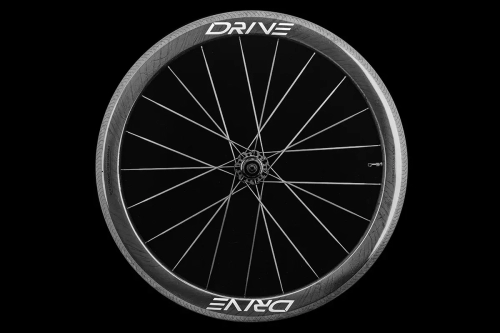

Drive 50V Rim Brake

The Drive 50V is dedicated to those who want an all-rounder that is more geared towards riding in the hills and mountains. The wheelset features carbon spokes, light and stiff UNI carbon fiber as well as high precision, ceramic bearing hubs. It is also tubeless-ready. The Drive 50V is for those who want a pro-level wheelset.

To enhance braking performance, the Drive 50V upgraded the original UD brake track to a 3K 45°twill weave carbon fiber brake surface engineered for superior stopping power and long-lasting durability. As a result, the total weight has been adjusted to 1355g for the pair.

– Carbon Spoke Wheelset
– Rim Brake Wheelset

*To ensure that the wheels are compatible with your bike and to prevent any rubbing, the brake pads should be at least 2mm away from the rim’s braking surface on both sides. We recommend checking with your frame and brake caliper manufacturers for the maximum tire clearance before placing your order.

– Custom option for different rim depths

*Availability Status:Usually shipped in 7-10 days.

US$1,169.00

(3 customer reviews)

Which freehub should I choose?

Optional accessories
Drive 50V Rim Brake
This item: Drive 50V Rim Brake
US$1,169.00
US$1,169.00
Black-Prince-Bake-Pads
Black Prince Brake Pads
-
+
Original price was: US$40.00.Current price is: US$32.00.
Rim
Wheel Size700c
Tire CompatibilityClincher/ Tubeless
Bead TypeHooked
Rim Depth50mm
Inner Width19.5mm
Outer Width30mm
Other
Rim FinishGlossy Marbling Black
Weight(pair)1355g±30g (without tubeless valves and rim tape)
ExtrasPre-installed Rim Tape & Tubeless Valves; Quick Releases; Brake Pads(2 Sets)
Rider Weight Limit285lbs/130kg
Compatible Tire Sizes700 x 23-35C
Recommended Tire Sizes700 x 25-30C
CertificationUCI Approved, CE Certified
Hub
Front Hub SpacingQR x 100mm
Rear Hub SpacingQR x 130mm
BearingS&S Ceramic
Brake CompatibilityRim Brake
Freehub Type4 Pawls
Freehub CompatibilityShimano / SRAM XDR / Campagnolo
Spoke
Front Spoke PatternRadial
Rear Spoke Pattern2X/Radial (2:1)
Spoke Count18F/21R
Spoke TypeCarbon Spoke (3.2mm)
Nipple TypeAlloy Secure Lock
Spare Spokes3PCS
Drive-V-Mixed-Rim

RIMS

At Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best performance, we incorporate our own UNI carbon fiber, a specific ratio of T800 and T1000 carbon fiber (*Read more about UNI technology), making rims not only strong, but also exceptionally light and stiff. The U/V-shaped rim profile of the Drive 40V was chosen to make the rim both aero as well as stable in windy conditions.

Drive-V-Mixed-Rim

SPOKES

What separates the Drive 50V from most other wheels is its use of high-modulus carbon spokes. They are 3.2mm wide aero bladed spokes, offering 7% more lateral stiffness as compared to equivalent steel spokes. The carbon spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular steel spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give them a double-locking effect.

Read more about CARBON SPOKES.

PERFORMANCE HUB

To get the most out of carbon fiber spokes, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

CERAMIC BEARINGS

The 50V’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

Read more about Ceramic Bearings.

BRAKE SURFACE

The Drive 50V uses a blend of 270 ℃, high-temperature resin, developed by Elitewheels, and Japanese Toray T800 carbon fiber for the brake surface. This heat resistance ensures excellent braking performance even on long, steep descents.

It features an advanced 3K 45° twill weave carbon fiber brake surface, engineered for superior braking performance and durability. Unlike traditional unidirectional (UD) layups, the cross-oriented fiber structure delivers balanced resistance to both lateral and longitudinal forces, ensuring consistent power and control in harsh conditions.

The 45° angled weave promotes efficient heat dissipation, effectively limiting localized overheating and maintaining stable braking efficiency at high temperatures. Additionally, the interlaced fiber pattern enhances wear resistance, reducing abrasion from brake pads while inhibiting crack propagation for longer-lasting performance.

Paired with a precisely textured friction surface, this system contributes to reliable, fade-free braking, ride after ride.

Is this wheelset UCI approved?+

Yes, the Drive 50V and Drive 40V are both UCI approved.

Which brands’ freehubs are compatible with Drive wheelsets?+

Since the hubs used in Drive wheels are manufactured in Elitewheels’ factory, freehubs from other brands are incompatible. The hubs used in Drive wheels have passed our 20,000km test. As long as you ride in normal conditions, the possibility of the freehub getting damaged is very low. If you ride in extreme conditions, we recommend you clean the freehub every 3000km.

Is there an internal nipple option?+

Internal nipples are not available because the nipples for carbon spokes are specially processed. The contact angle between spokes and spoke holes is extremely important. Spokes should not directly come into contact the rim directly, otherwise there would be a high likelihood of having spoke break.

Are brake pads included? Can I use brake pads from other brands?+

Yes, we will include two pairs of brake pads in the box of each rim brake wheelset. But the free brake pads are for general road conditions only. If you often do long downhill descending, we recommend upgrading them to SwissStop Flash EVO Black Prince brake pads, which have better brake performance and cooler temperatures. Please refer to this webpage for more information.

How to maintain rim brake wheels for longevity?+

Before every ride, inspect brake pads and the brake tracks, making sure they are clean and free of debris. Also ensure that the brake pads are centered. The brake pads that come with our rim brake wheelsets are for general road conditions only. If you often do long downhill descending, we recommend upgrading the brake pads to SwissStop Black Prince brake pads, which have better brake performance at cooler temperatures. Do not use brake pads not designed for carbon rims. When riding, use intermittent braking rather than braking continuously when descending to prevent overheating.

Which cassettes require the 1.85mm spacer?+

1.85mm spacers are required for Shimano 9/10-speed cassettes fitted on Shimano HG freehubs. Spacers are also required when pairing most SRAM XD MTB cassettes with SRAM XDR freehubs.

How do I check if my rim brake calipers are compatible Drive wheels?+

Please loosen the brake cable and measure the gap between the two brake pads. Please make sure there is at least 31mm clearance between the two brake pads to allow for adequate braking space. If there is sufficient space, insert the wheel with a tire on and ensure there is at least a 3mm gap between the tire and the frame and fork.

Are ceramic bearings easily broken?+

As all our our hubs have high-precision manufacturing tolerances, bearing play is significantly reduced. Because of this, the likelihood of bearings being damaged is extremely low.

What does the rider weight limit include?+

The rider weight limit includes the total weight of the rider, bike, gear, and any other accessories. Please do not exceed this weight.

What tire pressures should I run?+

The best tire pressure for you depends on many factors: the rim width, type of bike and tires, rider weight, road conditions and weather conditions. Please see our user guide for more information.

How strong are your carbon rims? What happens if I break one?+

Every one of our carbon rims has been strictly tested before shipment. We are so confident in the quality of our rims that we offer a 3-year warranty on every one. We also offer a crash replacement policy. To learn more, please refer to our warranty page.

Where can I find information on ordering and shipping?+

Please visit our FAQ page here.

Essential Safety Information+

For essential safety information, please read our Consumer Advice.

What happens if a carbon spoke breaks?+

Our threaded carbon spokes have been designed to last. In the event that a carbon spoke breaks, replacement is easy. Each wheel comes with replacement spokes that can be replaced like traditional steel spokes. For more information, please see this article. For information on where to get spokes replaced, please contact our customer service.

Are carbon spokes covered under warranty?+

Our standard 3-year warranty covers carbon spokes if they are damaged by non-external factors. This means they are only covered if there is a manufacturing defect. Click here for more information on our warranty.
