Drive Mixed Depth Bundle

It is well-known that having a shallower front wheel is easier to control in windy conditions, while deeper-section wheels allow for aero gains. A mixed-depth wheelset is the favorite of many pro riders, giving them the benefits of both. For this bundle, we are including the Drive 40D up front, coupled with the Drive 50D in the back. The 40D offers you more confidence and control while riding. The 50D gives an aero boost to save you precious extra watts.
– Carbon Spoke Disc Brake Wheelset
– F: Drive 40D R: Drive 50D
– Brake Interface: Center Lock by default (6-bolt available on request when placing your order)

This limited time package will be available from 11.23 to11.30.
Please note that it will take 20 days to prepare orders for Drive Mixed Depth Bundle wheelsets due to their high demand.

This product is currently out of stock and unavailable.

SKU: N/A Categories: , Product ID: 12046
* After placing the order, an email will be sent to you, please confirm the order details carefully. If you have any questions, you can directly reply to the email.


Crash Replacement

Free shipping

Global service



Series Drive
Wheel Sizes 700C
Tire Compatibility Clincher/ Tubeless
Rim Depth F40mm R50mm
Inner Width 21mm
Outer Width 28mm
Front Hub Spacing 12x100mm / QR x 100mm
Rear Hub Spacing 12x142mm / QR x 135mm
Bearing S&S Ceramic
Brake Compatibility Disc (Center Lock)
Freehub Type 4 Pawls
Freehub Compatibility Shimano / SRAM XDR
Front Spoke Pattern 2X/Radial (2:1)
Rear Spoke Pattern 2X/1X (2:1)
Spoke Count 21F/24R
Spoke Type Carbon cs-01
Nipple Type Alloy Secure Lock
Rim Finish Glossy Marbling Black
Extras Rim tape(Installed), Tubeless Valves(Installed), Spokes(4)
Weight (Pair) 1280±30g
Rider Weight Limit 285lbs/130kg
Recommended Tire Sizes 700 x 25-38C

DRIVE 50D Banner

DRIVE 50D Banner

Drive Mixed Depth Wheel Bundle wheelset Rims

Drive Mixed Depth Wheel Bundle wheelset Rims


A Elitewheels, we design our DRIVE wheels to match the needs of professional riders. In order to deliver the best, we incorporate our own UNI carbon fiber, a specific ratio of T800 and T1000 carbon fiber(*Read more about UNI technology), making it not only strong, but also especially light and stiff.The U/V-shaped rim profile of the Drive 40D and 50D were chosen to make the rims aero as well as stable in windy conditions. The 21mm inner rim width can accommodate wider tires for those looking for more grip and comfort.

Drive Mixed Depth Wheel Bundle Carbon Spokes

Drive Mixed Depth Wheel Bundle Carbon Spokes


What separates Drive wheels from most others is its use of high-modulus carbon spokes. The 3.3mm wide aero bladed spokes offer a 7% increase lateral response as compared to their equivalent steel spokes. The spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give it a double-locking effect.

*Read more about CARBON SPOKES.

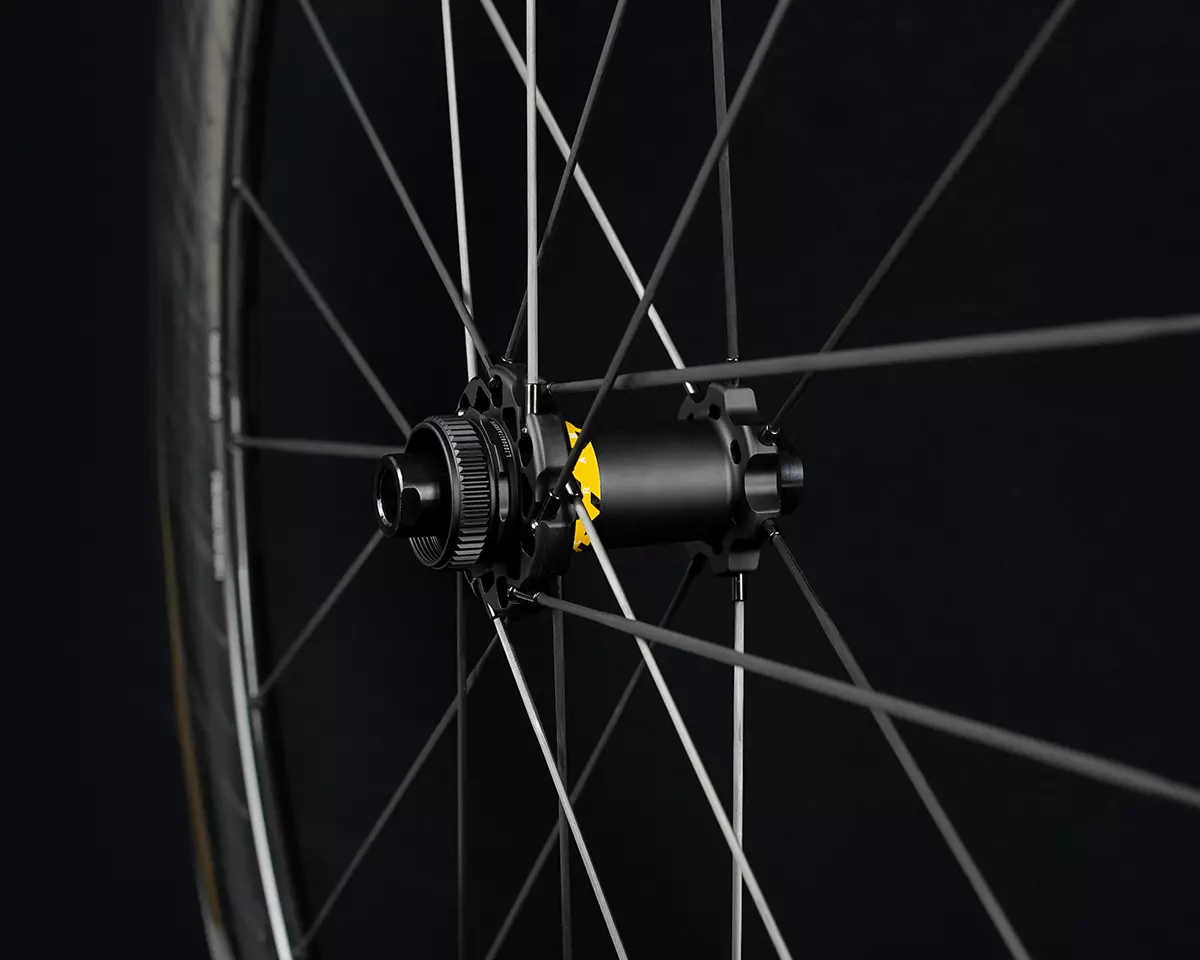

Drive Mixed Depth Wheel Bundle hub

Drive Mixed Depth Wheel Bundle hub


To get the most out of carbon fiber spokes, we specifically designed the hubs with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own hubs with Fanuc CNC machines, allowing for a tolerance of 0.02mm. This accuracy is important for bearing longevity and rolling resistance. This is essential when using mixed ceramic bearings.

Drive Mixed Depth Wheel Bundle Ceramic Bearings

Drive Mixed Depth Wheel Bundle Ceramic Bearings


The 40D front hub uses two 6803 mixed ceramic bearings. The 50D rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

*Read more about ceramic bearings.

in the box disc brake drive

in the box disc brake drive
Link for extra accessories
